Stahlwille 714/ 1 Electromechanical Torque Wrench
€1,422.95*
Delivery time 4 working days
Product information "Stahlwille 714/ 1 Electromechanical Torque Wrench "
Stahlwille 714/ 1 Torque and angle wrench MANOSKOP Model 714 Measuring r. 1-10N·m Drive L. 226mm
Features:
- 4 measuring modes (torque, angle of rotation, torque with monitoring variable "angle of rotation", angle of rotation with monitoring variable "torque")
- high-resolution colour OLED display and lateral signal lights
- optical evaluation of the tightening torque: Yellow light (pre-warning threshold reached), green light (in target range), red light (measured value outside tolerance range)
- Free configurable menu structure
- Bayonet lock for battery/rechargeable battery

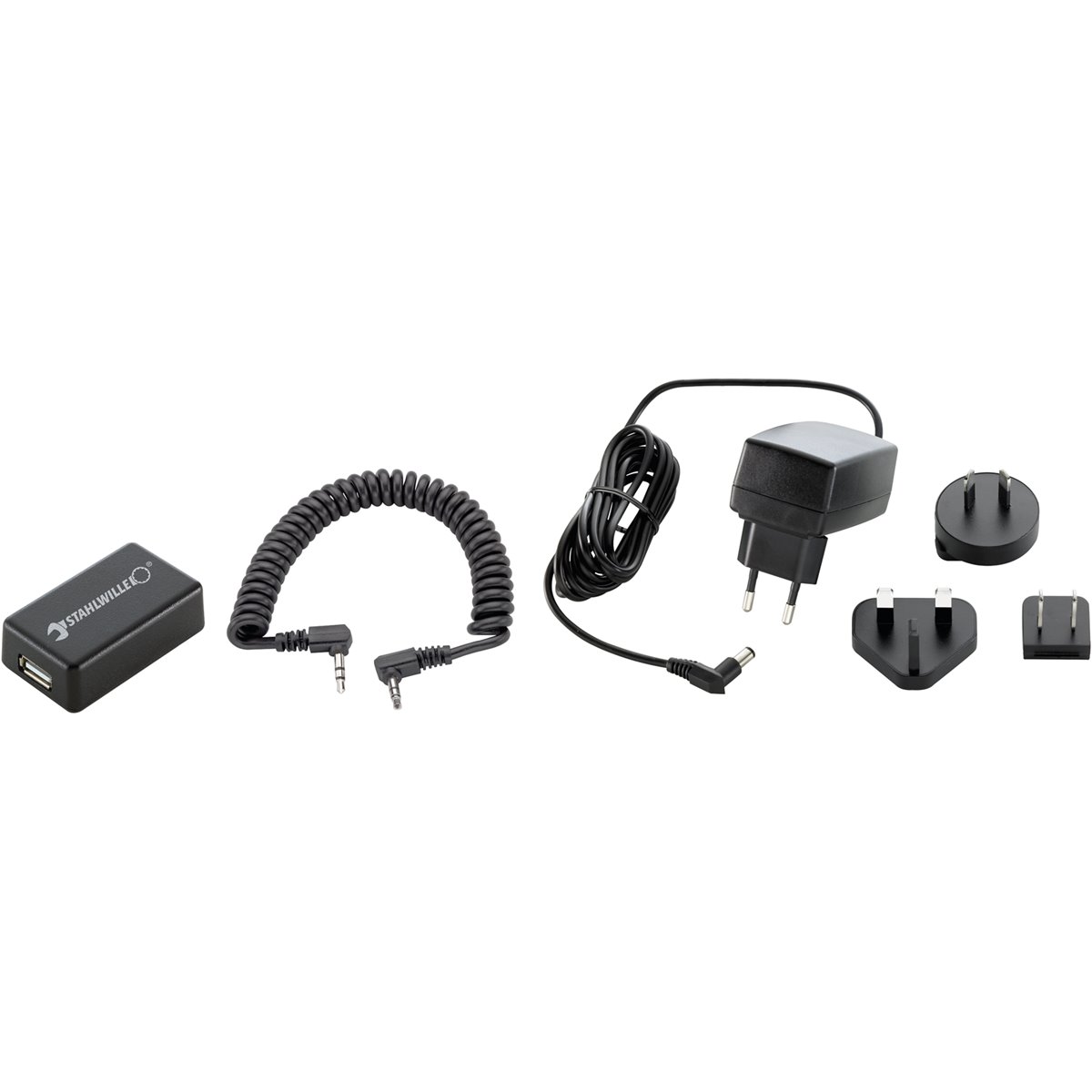

- Optional: Li-ion rechargeable battery no. 7195-2 and charger no. 7160
- 3 function modes: click-type (patented electromechanical release), peak hold (display mode with peak value display) and track (display mode with actual value display)
- Micro-USB interface for data exchange
- optional Bluetooth Low Energy module (5. 2)
- QuickRelease safety lock - change system for insert tools
- Data storage of up to 2. 500 screwdriving operations incl. date and time stamp
- Up to 200 fastening operations can be programmed in a maximum of 25 schedules
- Different tolerance limits can be set depending on the fastening operation
- Acoustic and visual evaluation of the fastening operation
- Fast and precise adjustment via keypad keypad
- no unintentional adjustment thanks to password-protected key lock
- acoustic and visual signal warns of torque wrench overload and forced tightening
- automatic reminder of the next calibration date, freely configurable according to time and/or number of loads
- fully automatic calibration and adjustment with the perfectControl calibration and adjustment device no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) to reduce error influencing factors
- Units of measurement: N-m, ft-lb, in-lb
- automatic gauge block correction: Option to enter a deviating gauge value to ensure the desired target value
- immediately ready for use again after relief
- right and left-hand tightening - for left-hand tightening in "click-type" function mode, the insert tool must be rotated
- optical, acoustic and tactile release signal
- torque and angle of rotation displays visible simultaneously
- measurement independent of the force application point (for gr. 1, 2 and 4)
- safe handling thanks to ergonomically shaped 2-component handle (resistant against the most common oils, greases, fuels, brake fluids and Skydrol)
- 3 certificates enclosed (torque indicating/click-type according to DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
- in a sturdy plastic case (sizes 40-100 in a sheet steel case)
- in a sturdy plastic case (sizes 40-100 in a sheet steel case). 40-100 in sheet steel case)
- registered design, patented

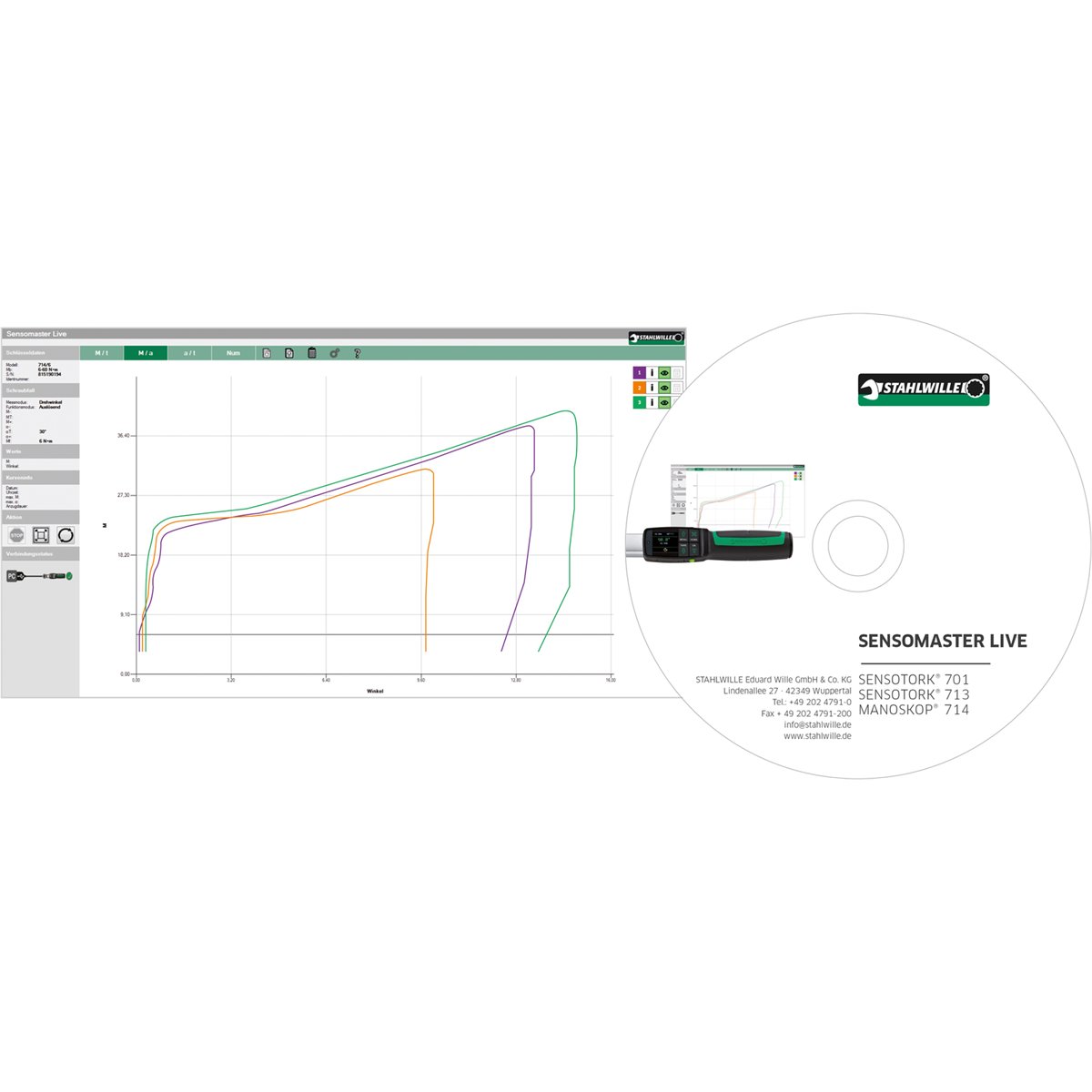

- Supplied with SensoMaster 4 software, USB cable, 4 micro batteries AAA/LR03, 1.5 V
- Display resolution angle of rotation 0, 1°
- Display deviation rotation angle ±1°, ±1 digit up to 100°, >100° at least 1%, ± 1 digit
- Display resolution torque ? 60 N-m: 0.01 N-m; > 60 N-m: 0.1 N-m; >400 N-m: 1 N-m
- Display deviation torque ± 2 %, ± 1 digit
Technical features:
- Measuring range N·m: 1-10 N·m
- Measuring range ft·lb: 0,7-7,5 ft·lb
- Measuring range in·lb: 9-90 in·lb
- Battery type: Micro (AAA) 1,5V
- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Weight with box: 795 g
- Size: 1
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 23 mm
- Length mm (L): 226 mm
- LF: 188 mm
- SF: 17,5 mm
- Weight: 370 g
- Weigth kg: 1.02 kg
Stahlwille 714/ 1
Stahlwille product no: 96500901
EAN: 4018754222780
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Electrical Torque Wrench |
| Torque range: | 1-10 N·m |
