Stahlwille 71AR/80 Torque Wrench Indicating
Product number:
1861555
Hersteller-Nr.:
50450080
EAN:
4018754124930
Gewicht (in KG):
4.9
Product information "Stahlwille 71AR/80 Torque Wrench Indicating"
Stahlwille 50450080 71aR/80 MANOSKOP® 71 with integrated force compensator
MANOSKOP® 71 with permanently installed reversible ratchet
- indicating type
- trailing pointer dial
- twin scales N m/ft.lb
- scale is made of luminescent light yellow special film enabling clear readings even in poor light conditions
- additional protection for the gauge by the protective ring
- handle with integrated force compensator
- not for anticlockwise measurement
- calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly
- with certificate
- display deviation value ± 4%
Features:
- Scale Range: 100-600 ft.lb
- Scale Range: 160-800 N m
- Scale Division: 10 ft.lb
- Scale Division: 10 N m
- Outside Square: 3/4"

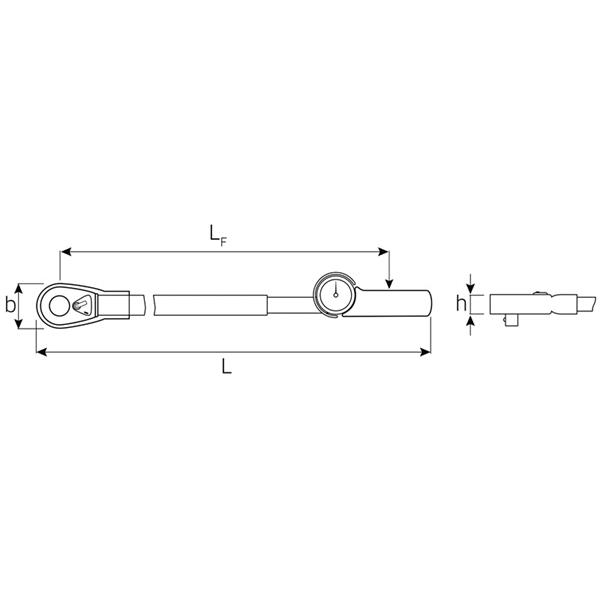

- B: 70 mm
- H: 30 mm
- L: 1152 mm
- LF: 1060 mm
- Weight: 4280g
| Antrieb: | 3/4" (20 mm) |
|---|---|
| Drehmomentbereich: | 160-800 N·m |
| Drehmomentwerkzeuge: | Mech. Drehmomentschlüssel |
