Stahlwille 721NF/80 Torque Wrench With Cut-Out
Stahlwille 721NF/80 Torque wrench MANOSKOP Model 721NF/80 Measuring r. 160-800N·m Drive 3/4 L. 1051mm
Features:
- click-type
- convenient adjustment
- dual stop signal
- dual scale N-m/ft-lb
- left-hand tightening thanks to reversible square drive
- protection of all sensitive parts thanks to the sturdy steel tube in aluminium U-profile
- calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Delivered in a textile bag
- Display deviation ± 4 %
Technical features:
- Scale division N·m: 20 N·m
- Scale division ft·lb: 20 ft·lb
- Measuring range N·m: 160-800 N·m
- Measuring range ft·lb: 120-600 ft·lb
- External square drive (inch): 3/4

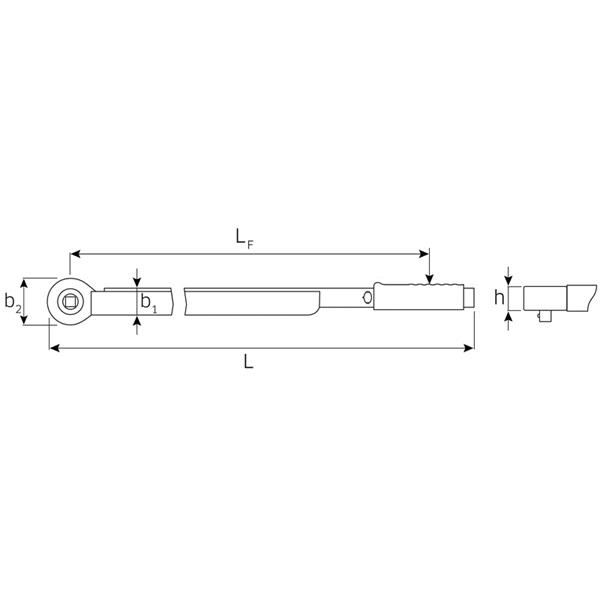

- b1: 46,5 mm
- b2: 76 mm
- Width mm (b): 150 mm
- DIN: DIN EN ISO 6789-2:2017
- Size: 80
- Height mm (h): 42 mm
- Length mm (L): 1051 mm
- LF: 938 mm
- MA N·m: 160 N·m
- Nominal value N·m: 800 N·m
- Weight: 6380 g
- Weigth kg: 7.1 kg
Stahlwille 721NF/80
Stahlwille product no: 50200081
EAN: 4018754031979
| Drive: | 3/4" (20 mm) |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 160-800 N·m |
