Stahlwille 730/12 QUICK Torque Wrench With Cut-Out
€280.95*
Content:
1 pcs
Available, delivery time: 2 working days
Available1: 1 unit(s)
Product number:
1861537
Manufacturer no.:
50184012
EAN:
4018754268863
Weight (kg):
1.07
Product information "Stahlwille 730/12 QUICK Torque Wrench With Cut-Out "
Stahlwille 730/12 QUICK Torque wrench service MANOSKOP Model 730/12 Quick Measuring r. 25-130N·m Tool holders 14 x 18 mm L. 410mm
Features:
- click-type with a dual stop signal
- Display deviation: ±4 %
- no resetting to "0" required
- the measuring element is only loaded during the tightening process
- with mount for interchangeable insert/shell tools
- QuickRelease safety lock

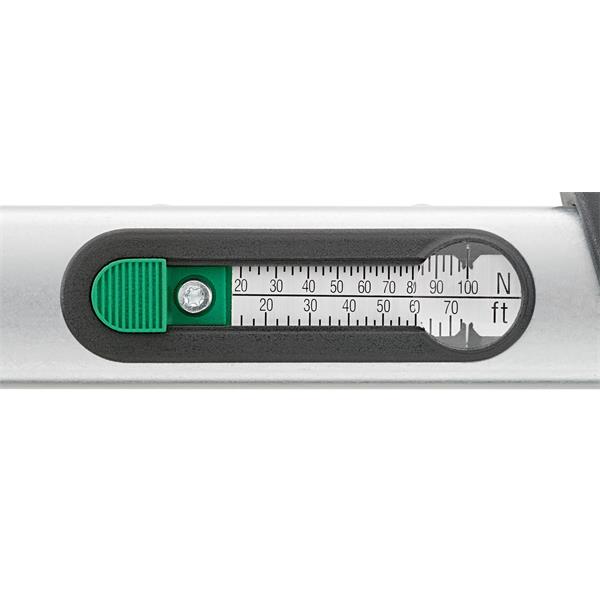

- sliding adjustment knob for quick torque setting
- arrow-shaped pointers
- non-slip adjustment element with thumb recess
- dual stop signal
- dual scale N-m/ft-lb or N-m/in-lb
- On request also available as N-m version only without double scale
- Ergonomic 2-component handle
- Left-hand tightening by turning the insert/shell tools
- Trigger mechanism insensitive to further and counter load
- With calibration certificate
- Calibration with the perfectControl calibration device no. 7794 or the calibration unit no. 7706
- Easy adjustment using two adjustment points
- Certificate in accordance with DIN EN ISO 6789-2:2017
Technical features:
- Scale division N·m: 2,5 N·m
- Scale division ft·lb: 2,5 ft·lb
- Measuring range N·m: 25-130 N·m
- Measuring range ft·lb: 20-95 ft·lb

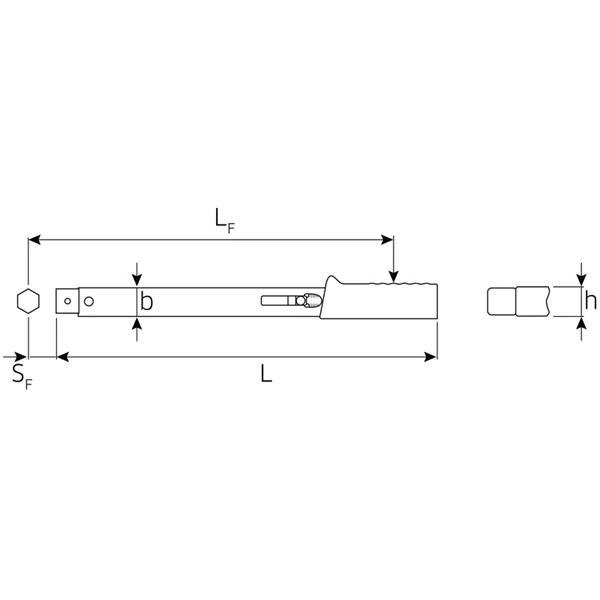

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Size: 12
- Size square socket [inside square drive]: 14 x 18 mm
- Height mm (h): 23 mm
- Length mm (L): 410 mm
- LF: 390 mm
- SF: 25 mm
- Weight: 1074 g
- Weigth kg: 1.07 kg
Stahlwille 730/12 QUICK
Stahlwille product no: 50184012
EAN: 4018754268863
| Drive: | 14x18 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 25-130 N·m |
