Stahlwille 730A/10 QUICK Torque Wrench With Cut-Ou t
Product number:
1861560
Manufacturer no.:
50584010
EAN:
4018754032280
Weight in kg:
0.93
Product information "Stahlwille 730A/10 QUICK Torque Wrench With Cut-Ou t"
Stahlwille 730A/10 QUICK Torque wrench service MANOSKOP Model 730a/10 Quick Measuring r. 180-880in lb Tool holders 9 x 12 mm L. 370mm
Features:
- click-type
- no need to reset to "0" as the measuring element is only loaded during the tightening process
- mount for interchangeable insert/shell tools
- QuickRelease safety lock (size 5-65)
- flash adjustment via easy-to-operate clamping lever in the handle (size 5-65)
- ergonomically shaped, non-slip adjustment element with thumb recess

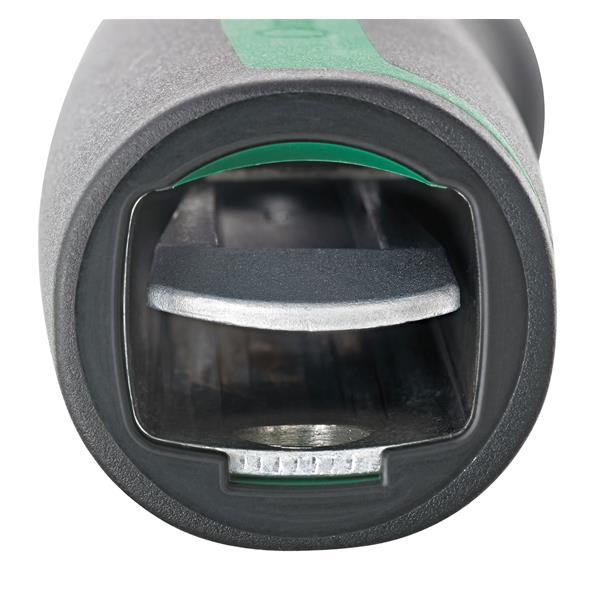

- optimised ball handle for fatigue-free working
- Dual stop signal

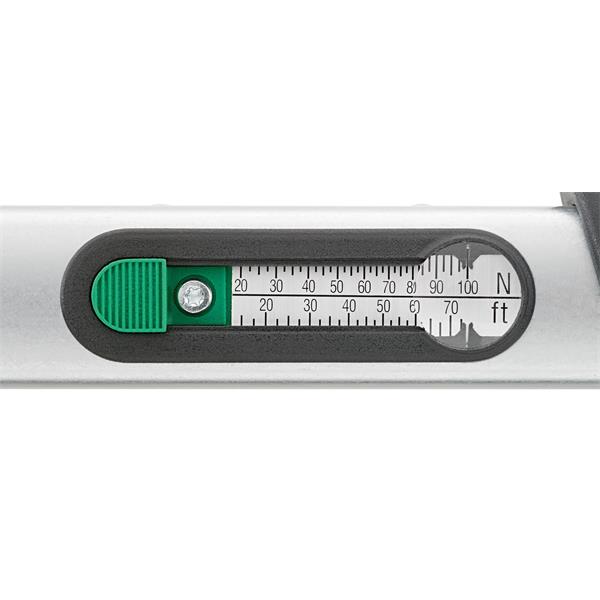

- Dual scale N-m/ft-lb or N-m/in-lb (size 5-80)
- On request, also available as an N-m version only without double scale (size 5-65)
- Left-hand tightening by turning the insert/shell tools
- Continued load after click-type operation or loads against the functional direction, e.g. in the case of tight screws, have an effect. with tight screws, do not affect the release mechanism, which is thus protected from damage
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Display deviation ±4 %
Technical features:
- Scale division N·m: 2,5 N·m
- Scale division in·lb: 20 in·lb
- Measuring range N·m: 20-100 N·m
- Measuring range in·lb: 180-880 in·lb

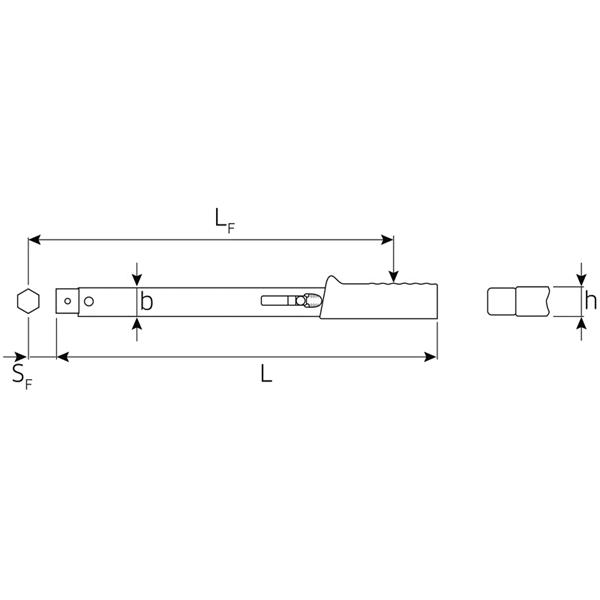

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Size: a/10
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 23 mm
- Length mm (L): 370 mm
- LF: 343 mm
- SF: 17,5 mm
- Weight: 934 g
- Weigth kg: 0.93 kg
Stahlwille 730A/10 QUICK
Stahlwille product no: 50584010
EAN: 4018754268986
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 20-100 N·m |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
STAHLWILLE Eduard Wille GmbH & Co.KG
Lindenallee 27
42349 Wuppertal
Germany
info@stahlwille.de
