Stahlwille 730N/5 Torque Wrench With Cut-Out
Product number:
1861543
Manufacturer no.:
50181005
EAN:
4018754139514
Weight (kg):
0.9
Product information "Stahlwille 730N/5 Torque Wrench With Cut-Out "
Stahlwille 730N/5 Torque wrench service MANOSKOP Model 730N/5 Measuring r. 10-50N·m Tool holders 9 x 12 mm L. 330mm
Features:
- click-type
- no need to reset to "0" as measuring element is only loaded during the tightening process
- fast, precise setting thanks to QuickSelect quick adjustment
- dual stop signal
- very easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lb
- continued load after release or loads against the functional direction, e.g. with tight screws
- . The release mechanism is protected from damage as a result
- 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- Delivered in a textile bag (from size 65). 65)
- DBGM (German Federal Utility Model)
- Mount for interchangeable insert/shell tools
- QuickRelease safety lock
- Left-hand tightening by turning the insert/shell tools
- Display deviation ± 3 % (size 2; a/2 4 %)
Technical features:
- Scale division N·m: 5 N·m
- Scale division ft·lb: 1 ft·lb
- Measuring range N·m: 10-50 N·m
- Measuring range ft·lb: 7-37 ft·lb

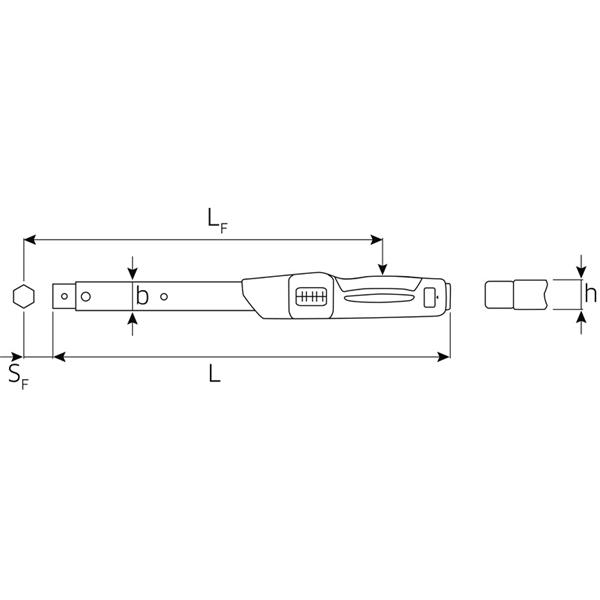

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Fine scale division: 0,25 N·m
- Size: 5
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 23 mm
- Length mm (L): 330 mm
- LF: 280,5 mm
- MA N·m: 10 N·m
- Nominal value N·m: 50 N·m
- SF: 17,5 mm
- Weight: 831 g
- Weigth kg: 0.9 kg
Stahlwille 730N/5
Stahlwille product no: 50181005
EAN: 4018754139514
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 10-50 N·m |
