Stahlwille 730N/65 Torque Wrench With Cut-Out

€770.66*

Content: 1 pcs
/ 4

Delivery time 4 working days

Variante
Stk
Product number: 1861548
Manufacturer no.: 50181065
EAN: 4018754163991
Weight (kg): 3.4
Product information "Stahlwille 730N/65 Torque Wrench With Cut-Out "

Stahlwille 730N/65 Torque wrench service MANOSKOP Model 730N/65 Measuring r. 130-650N·m Tool holders 14 x 18 mm L. 890mm



Features:

  • click-type
  • no need to reset to "0" as measuring element is only loaded during the tightening process
  • fast, precise setting thanks to QuickSelect quick adjustment
  • dual stop signal
  • very easy-to-read dual scale with colour differentiation of N-m/ft-lb or ft-lb/in-lb
  • continued load after release or loads against the functional direction, e.g. with tight screws
  • . The release mechanism is protected from damage as a result
  • 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
  • Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. Readjustment without disassembly if necessary
  • Certificate in accordance with DIN EN ISO 6789-2:2017
  • Delivered in a textile bag (from size 65). 65)
  • DBGM (German Federal Utility Model)
  • Mount for interchangeable insert/shell tools
  • QuickRelease safety lock
  • Left-hand tightening by turning the insert/shell tools
  • Display deviation ± 3 % (size 2; a/2 4 %)


Technical features:

  • Scale division N·m: 50 N·m
  • Scale division ft·lb: 20 ft·lb
  • Measuring range N·m: 130-650 N·m
  • Measuring range ft·lb: 100-480 ft·lb

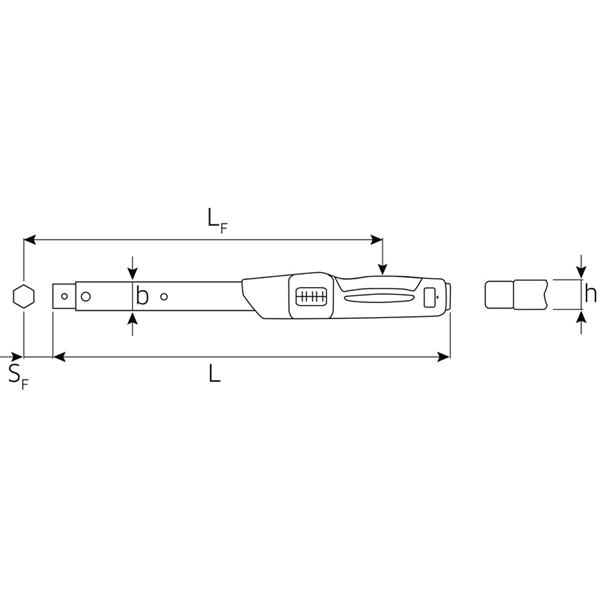

  • Width mm (b): 30,6 mm
  • DIN: DIN EN ISO 6789-2:2017
  • Fine scale division: 2,5 N·m
  • Size: 65
  • Size square socket [inside square drive]: 14 x 18 mm
  • Height mm (h): 25,6 mm
  • Length mm (L): 890 mm
  • LF: 848 mm
  • MA N·m: 130 N·m
  • Nominal value N·m: 650 N·m
  • SF: 25 mm
  • Weight: 3231 g
  • Weigth kg: 3.4 kg

Stahlwille 730N/65
Stahlwille product no: 50181065
EAN: 4018754163991



Drive: 14x18
Torque Tools: Mechanical torque wrench
Torque range: 65-650 N·m
