Stahlwille 730NA/10 Torque Wrench With Cut-Out
€357.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1861565
Manufacturer no.:
50581010
EAN:
4018754139576
Weight in kg:
1.21
Product information "Stahlwille 730NA/10 Torque Wrench With Cut-Out "
Stahlwille 730NA/10 Torque wrench service MANOSKOP Model 730Na/10 Measuring r. 180-900in lb Tool holders 9 x 12 mm L. 386mm
Features:
- click-type
- no reset to "0" required as measuring element is only loaded during the tightening process
- fast, precise setting thanks to QuickSelect quick adjustment
- dual stop signal
- very easy-to-read dual scale with colour differentiation of ft-lb/in-lb
- continued loading after release or loads against the functional direction, e.g. in the case of tight screws, have a negative effect on the measuring element. The release mechanism is protected from damage by the fact that it is not affected by tightened screws
- 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- DBGM (German Federal Utility Model)
- Mount for interchangeable insert/shell tools
- QuickRelease safety lock
- Left-hand tightening by turning the insert/shell tools
- Display deviation ± 3 % (Gr. A/2: 4 %)
Technical features:
- Scale division in·lb: 100 in·lb
- Scale division ft·lb: 2,5 ft·lb
- Measuring range ft·lb: 15-75 ft·lb
- Measuring range in·lb: 180-900 in·lb

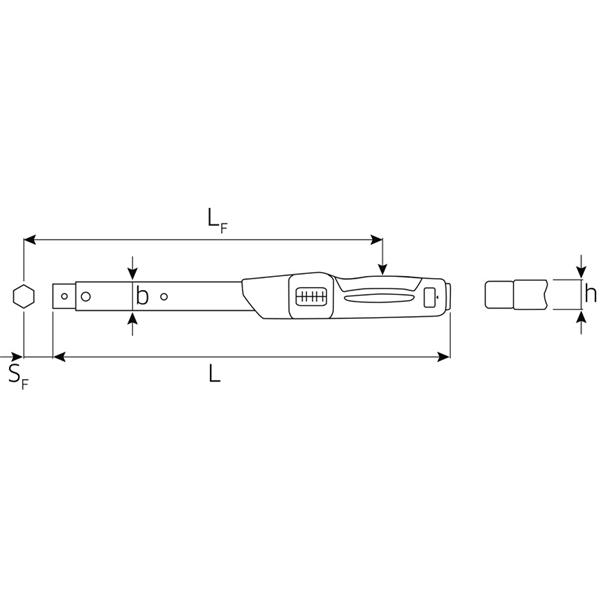

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Fine scale division: 5 in·lb
- Size: a/10
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 23 mm
- Length mm (L): 386 mm
- LF: 336 mm
- SF: 17,5 mm
- Weight: 988 g
- Weigth kg: 1.210 kg
Stahlwille 730NA/10
Stahlwille product no: 50581010
EAN: 4018754139576
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 180-900 in·lb |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
STAHLWILLE Eduard Wille GmbH & Co.KG
Lindenallee 27
42349 Wuppertal
Germany
info@stahlwille.de
