Stahlwille 730NA/20 Torque Wrench With Cut-Out
€400.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1861566
Manufacturer no.:
50581020
EAN:
4018754139590
Weight in kg:
1.49
Product information "Stahlwille 730NA/20 Torque Wrench With Cut-Out "
Stahlwille 730NA/20 Torque wrench service MANOSKOP Model 730Na/20 Measuring r. 350-1800in lb Tool holders 14 x 18 mm L. 467mm
Features:
- click-type
- no reset to "0" required as measuring element is only loaded during the tightening process
- fast, precise setting thanks to QuickSelect quick adjustment
- dual stop signal
- very easy-to-read dual scale with colour differentiation of ft-lb/in-lb
- continued loading after release or loads against the functional direction, e.g. in the case of tight screws, have a negative effect on the measuring element. The release mechanism is protected from damage by the fact that it is not affected by tightened screws
- 2-component handle with hand-friendly, green soft zone (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. readjustment without disassembly if necessary
- Certificate in accordance with DIN EN ISO 6789-2:2017
- DBGM (German Federal Utility Model)
- Mount for interchangeable insert/shell tools
- QuickRelease safety lock
- Left-hand tightening by turning the insert/shell tools
- Display deviation ± 3 % (Gr. A/2: 4 %)
Technical features:
- Scale division in·lb: 100 in·lb
- Scale division ft·lb: 5 ft·lb
- Measuring range ft·lb: 30-150 ft·lb
- Measuring range in·lb: 350-1800 in·lb

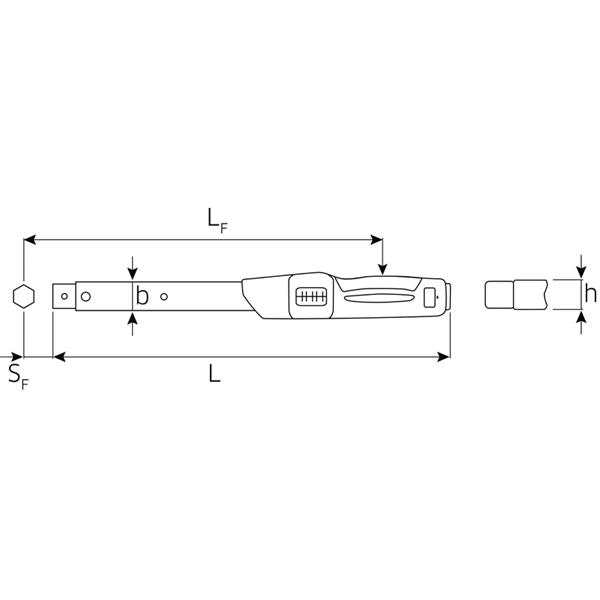

- Width mm (b): 28 mm
- DIN: DIN EN ISO 6789-2:2017
- Fine scale division: 10 in·lb
- Size: a/20
- Size square socket [inside square drive]: 14 x 18 mm
- Height mm (h): 23 mm
- Length mm (L): 467 mm
- LF: 424,5 mm
- SF: 25 mm
- Weight: 1264 g
- Weigth kg: 1.49 kg
Stahlwille 730NA/20
Stahlwille product no: 50581020
EAN: 4018754139590
| Drive: | 14x18 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 350-1800 in·lb |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
STAHLWILLE Eduard Wille GmbH & Co.KG
Lindenallee 27
42349 Wuppertal
Germany
