Stahlwille 755/20 Torque Wrench With Cut-Out
€174.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1861529
Manufacturer no.:
50010020
EAN:
4018754031641
Weight in kg:
1.04
Product information "Stahlwille 755/20 Torque Wrench With Cut-Out "
Stahlwille 755/20 Torque wrench series MANOSKOP Model 755/20 Measuring r. 40-200N·m Tool holders 14 x 18 mm L. 457mm
Features:
- For work on the assembly line or in series production. No setting scale; therefore adjustment with testing devices required, e.g. with STAHLWILLE testing devices no. 7707 W, SmartCheck or calibration systems no. 7794, no. 7706.
- click-type
- mount for interchangeable insert tools (755/4-30)
- dual stop signal
- particularly light and handy
- handle and shaft made of square steel tube
- continued load after click-type or loads against the functional direction (max. up to the measuring range limit of the torque wrench) do not affect the release mechanism, which is thus protected from damage
- Left-hand tightening with reversible insert tools
- On request with preset release value (price surcharge 10%)
- Adjustment with torque wrench tester
- Display deviation ± 4%

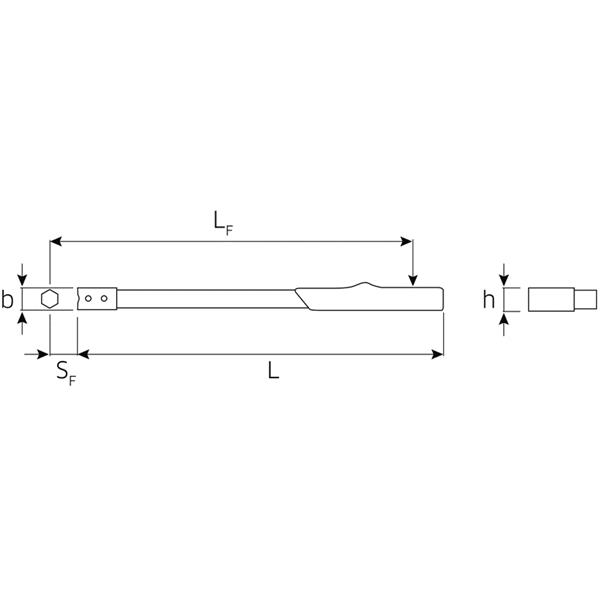

Technical features:
- Measuring range N·m: 40-200 N·m
- Measuring range ft·lb: 30-147 ft·lb
- Width mm (b): 28 mm
- Size: 20
- Size square socket [inside square drive]: 14 x 18 mm
- Height mm (h): 24 mm
- Length mm (L): 457 mm
- LF: 435 mm
- MA N·m: 40 N·m
- Nominal value N·m: 200 N·m
- SF: 25 mm
- Weight: 1045 g
- Weigth kg: 1.05 kg
Stahlwille 755/20
Stahlwille product no: 50010020
EAN: 4018754031641
| Drive: | 14x18 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 40-200 N·m |
