Stahlwille 755/30 Torque Wrench With Cut-Out
€194.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1861530
Manufacturer no.:
50010030
EAN:
4018754031658
Weight in kg:
1.21
Product information "Stahlwille 755/30 Torque Wrench With Cut-Out "
Stahlwille 755/30 Torque wrench series MANOSKOP Model 755/30 Measuring r. 60-300N·m Tool holders 14 x 18 mm L. 609mm
Features:
- For work on the assembly line or in series production. No setting scale; therefore adjustment with testing devices required, e.g. with STAHLWILLE testing devices no. 7707 W, SmartCheck or calibration systems no. 7794, no. 7706.
- click-type
- mount for interchangeable insert tools (755/4-30)
- dual stop signal
- particularly light and handy
- handle and shaft made of square steel tube
- continued load after click-type or loads against the functional direction (max. up to the measuring range limit of the torque wrench) do not affect the release mechanism, which is thus protected from damage
- Left-hand tightening with reversible insert tools
- On request with preset release value (price surcharge 10%)
- Adjustment with torque wrench tester
- Display deviation ± 4%
Technical features:
- Measuring range N·m: 60-300 N·m
- Measuring range ft·lb: 40-220 ft·lb

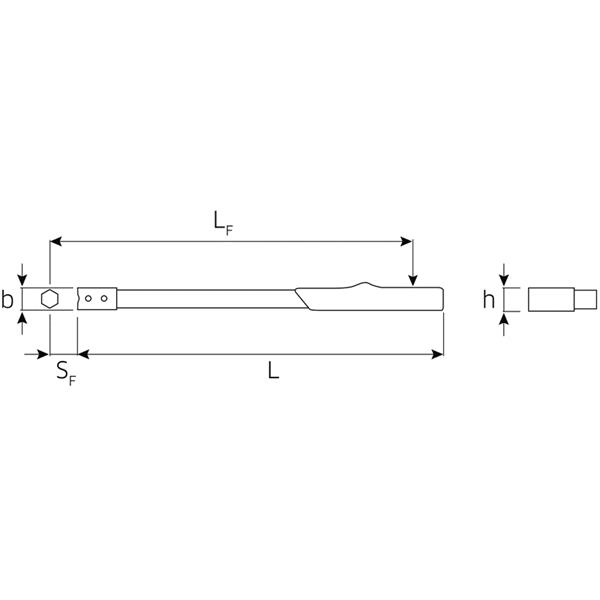

- Width mm (b): 28 mm
- Size: 30
- Size square socket [inside square drive]: 14 x 18 mm
- Height mm (h): 24 mm
- Length mm (L): 609 mm
- LF: 587 mm
- MA N·m: 60 N·m
- Nominal value N·m: 300 N·m
- SF: 25 mm
- Weight: 1210 g
- Weigth kg: 1.210 kg
Stahlwille 755/30
Stahlwille product no: 50010030
EAN: 4018754031658
| Drive: | 14x18 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 60-300 N·m |
