Stahlwille 755/4 Torque Wrench With Cut-Out
€164.95*
Content:
1 pcs
/ 4
Delivery time 4 working days
Variante
Product number:
1861527
Manufacturer no.:
50010004
EAN:
4018754031603
Weight in kg:
0.5
Product information "Stahlwille 755/4 Torque Wrench With Cut-Out "
Stahlwille 755/4 Torque wrench series MANOSKOP Model 755/4 Measuring r. 4-40N·m Tool holders 9 x 12 mm L. 201mm
Features:
- For work on the assembly line or in series production. No setting scale; therefore adjustment with testing devices required, e.g. with STAHLWILLE testing devices no. 7707 W, SmartCheck or calibration systems no. 7794, no. 7706.
- click-type
- mount for interchangeable insert tools (755/4-30)
- dual stop signal
- particularly light and handy
- handle and shaft made of square steel tube
- continued load after click-type or loads against the functional direction (max. up to the measuring range limit of the torque wrench) do not affect the release mechanism, which is thus protected from damage
- Left-hand tightening with reversible insert tools
- On request with preset release value (price surcharge 10%)
- Adjustment with torque wrench tester
- Display deviation ± 4%

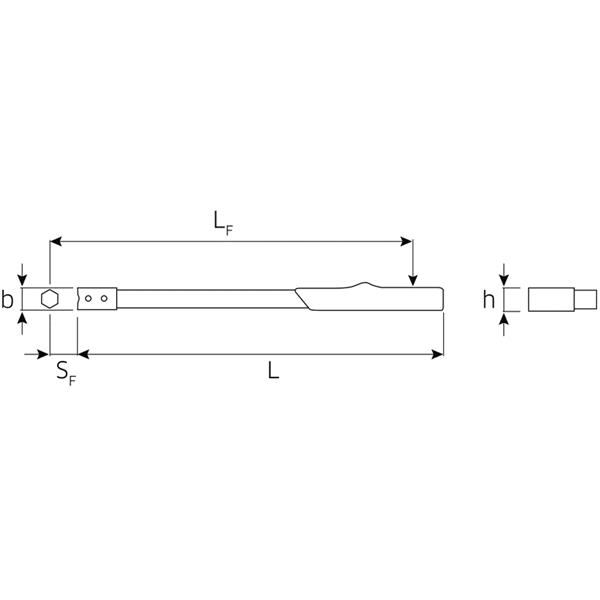

Technical features:
- Measuring range N·m: 4-40 N·m
- Measuring range ft·lb: 3-30 ft·lb
- Width mm (b): 22 mm
- Size: 4
- Size square socket [inside square drive]: 9 x 12 mm
- Height mm (h): 18 mm
- Length mm (L): 201 mm
- LF: 172 mm
- MA N·m: 4 N·m
- Nominal value N·m: 40 N·m
- SF: 17,5 mm
- Weight: 500 g
- Weigth kg: 0.5 kg
Stahlwille 755/4
Stahlwille product no: 50010004
EAN: 4018754031603
| Drive: | 9x12 |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 4-40 N·m |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
STAHLWILLE Eduard Wille GmbH & Co.KG
Lindenallee 27
42349 Wuppertal
Germany
