Kukko Spare part

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder

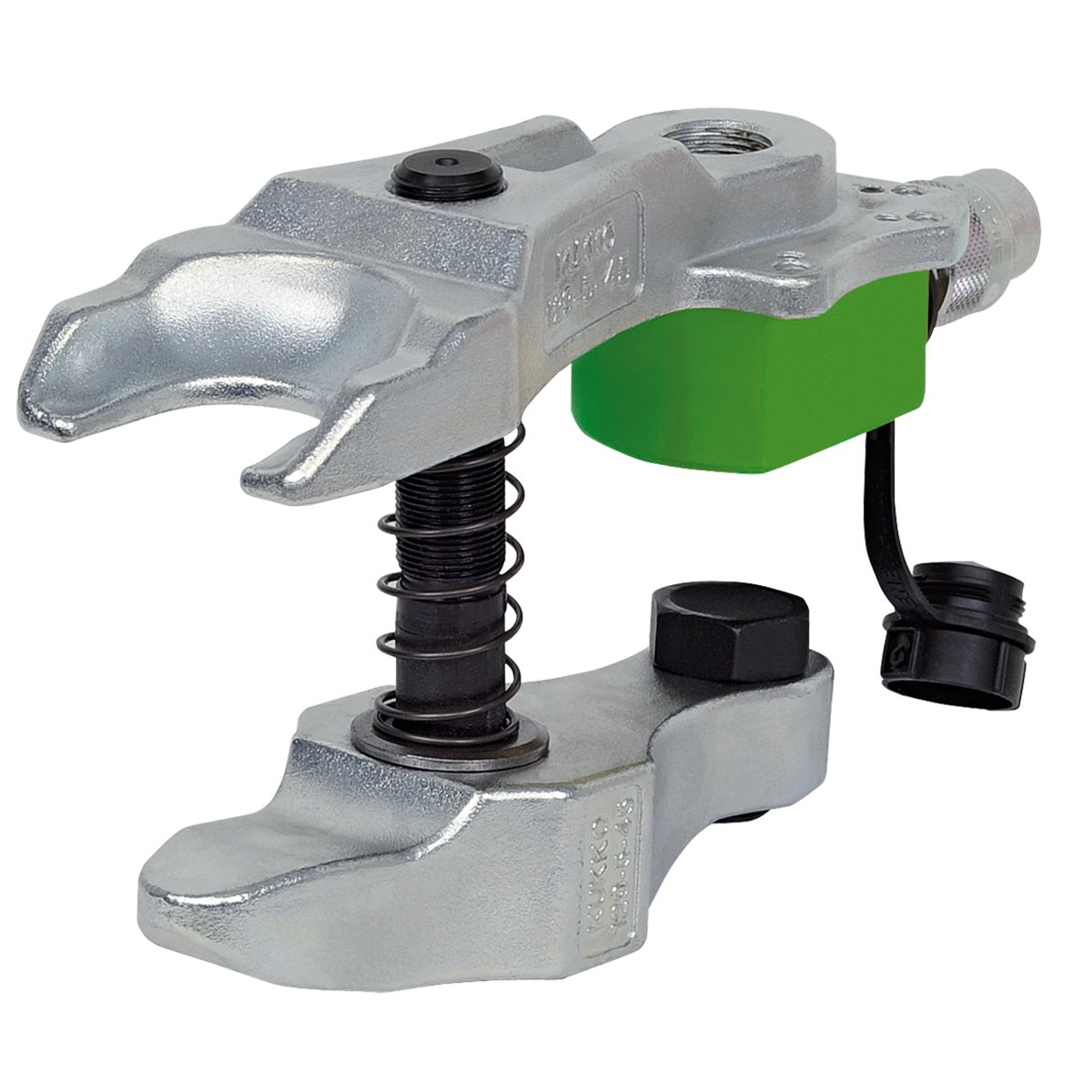

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder   Description High performance is guaranteed by the extra-powerful design of the basic body and reinforced fork. Hydraulic cylinder. The central spindle can be used to preload and adjust the extractor. Suitable for the following motor vehicle types: Mercedes Benz: ACTROS, ATEGO over 18 tonnes, SKO 405, -N, -GN (low-floor buses) MAN: F2000, TG, A 23 (low-floor articulated buses) Scania models 3 and 4, Icarus A hydraulic pump (YHP-320) with a hose (YF-200) is required to drive the tool. Not included in delivery. Use Used for hydraulic extraction of ball pins when dismantling ball joints on connecting and steering tie rods, especially, for trucks and low-floor buses. Advantage The hydraulic extractors are driven by a hydraulic cylinder, which ensures controlled and safe operations. They use the entire performance range of the puller, well beyond the possibilities of a mechanical pressure screw. Almost all components available as replacement parts, time-saving order process thanks to numbering system. How it works Position the puller clamp by pressing on the spring, slide it between the ball joint, and operate the hydraulics. To drive the hydraulic cylinder with the 3/8 high flow coupling box use the Baureihe YHP-325 Preposition the extractor at the right height, preload the anvil and then activate the hydraulics/pressure spindle. Safety information Do not use any electrical or pneumatic servo screwdrivers or hammer drills. Protective blanket required. Protective goggles required.

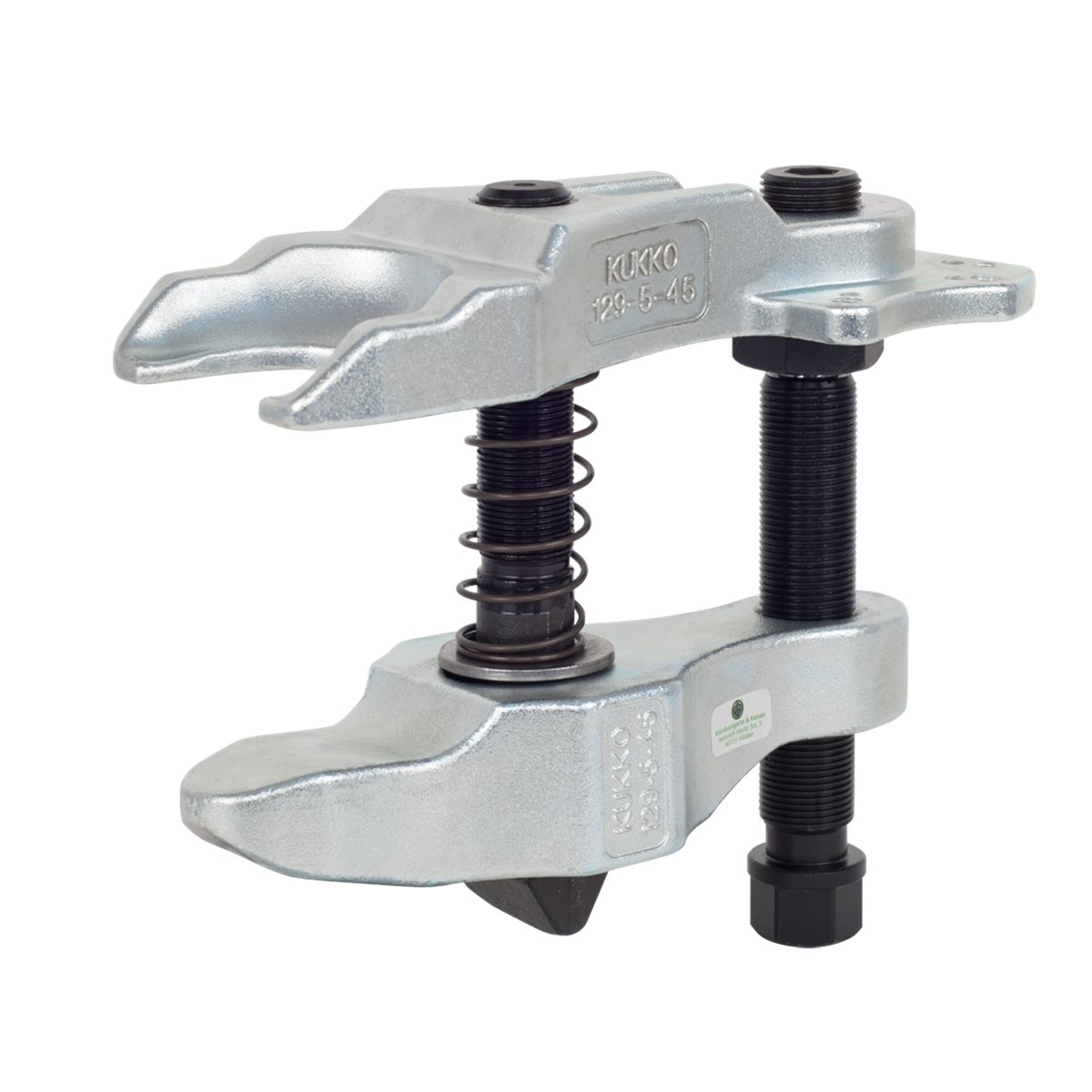

Kukko Tie and connecting rod joint puller DescriptionThe central spindle can be used to preload and adjust the extractor.Mechanical pressure screw.Milled thread treated with special coating. UseUsed for extracting ball pins when dismantling ball joints on push and tie rods. AdvantageThis extractor can be used both mechanically and with a hydraulic cylinder Baureihe 129-5-50-H.Depending on the positioning requirements, the mechanical drive spindle can be converted for operation from above or below.Almost all components available as replacement parts, time-saving order process thanks to numbering system.Little force required for a strong pulling performance.Continuously adjustable clamping widths. How it worksPosition the puller clamp by pressing on the spring, slide it between the ball joint and operate the drive spindle. Safety informationDo not use any electrical or pneumatic servo screwdrivers or hammer drills.Protective blanket required.Protective goggles required.

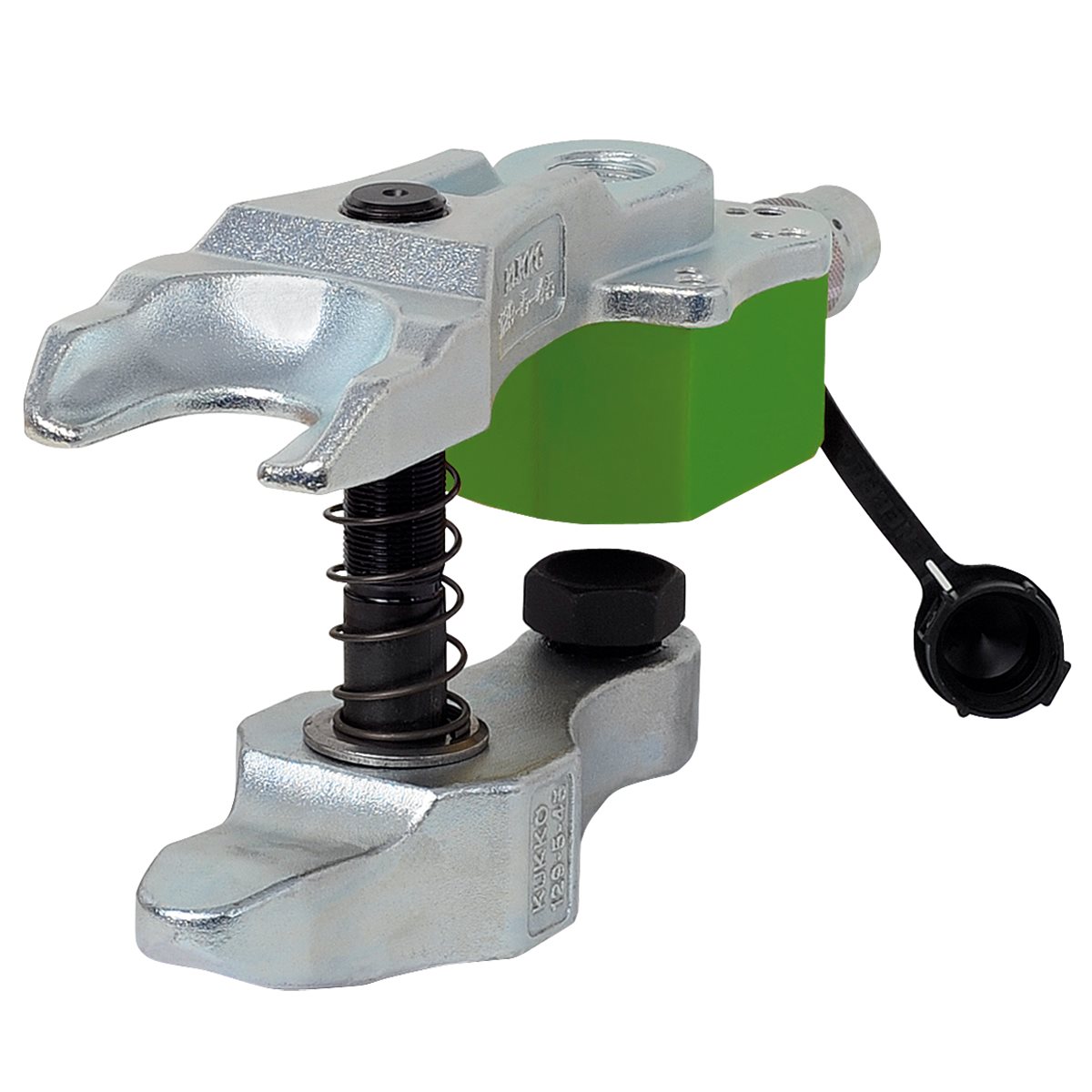

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder   Description High performance is guaranteed by the extra-powerful design of the basic body and reinforced fork. Heavy duty version for hydraulic extraction and separation of the ball joints on the connecting rods and steering tie rods. Hydraulic cylinder. Milled thread treated with special coating.   Use Used for hydraulic extraction of ball pins when dismantling ball joints on push and tie rods.   Advantage The hydraulic extractors (129-5-50-H10 and 129-5-50- H20) are driven by a hydraulic cylinder, which ensures controlled and safe operations. They use the entire performance range of the puller, well beyond the possibilities of a mechanical pressure screw. Simple adjustment of clamping depths thanks to spring mechanism. Continuously adjustable clamping widths. Little force required for a strong pulling performance.   How it works Position the puller clamp by pressing on the spring, slide it between the ball joint, and operate the hydraulics. To drive the hydraulic cylinder with the 3/8 high flow coupling box use the YHP-325 series Preposition the extractor at the right height, preload the anvil and then activate the hydraulics/pressure spindle.   Safety information Do not use any electrical or pneumatic servo screwdrivers or hammer drills. Protective blanket required. Protective goggles required.

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder

Kukko Ball joints extractor with short hydraulic spindle

Kukko Ball joints extractor for trucks Universal"
