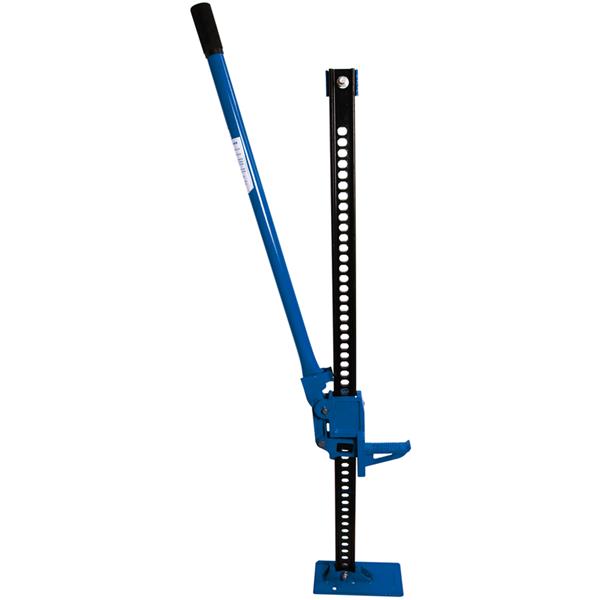

BGS 2884 ATV/Quad Car Jack, 2500 kg Features:BGS 2884 ATV/Quad Car Jack, 2500 kgespecially for off-road vehicles with a high ground clearanceallows easy lifting, even when lifting on soft undergroundhas a setback locking mechanism for actuating tube Technical features:Lifting height min.: 130 mmRated load capacity: 2500 kgGross weight: 13500 gLifting height max.: 930 mmEAN: 4026947028842

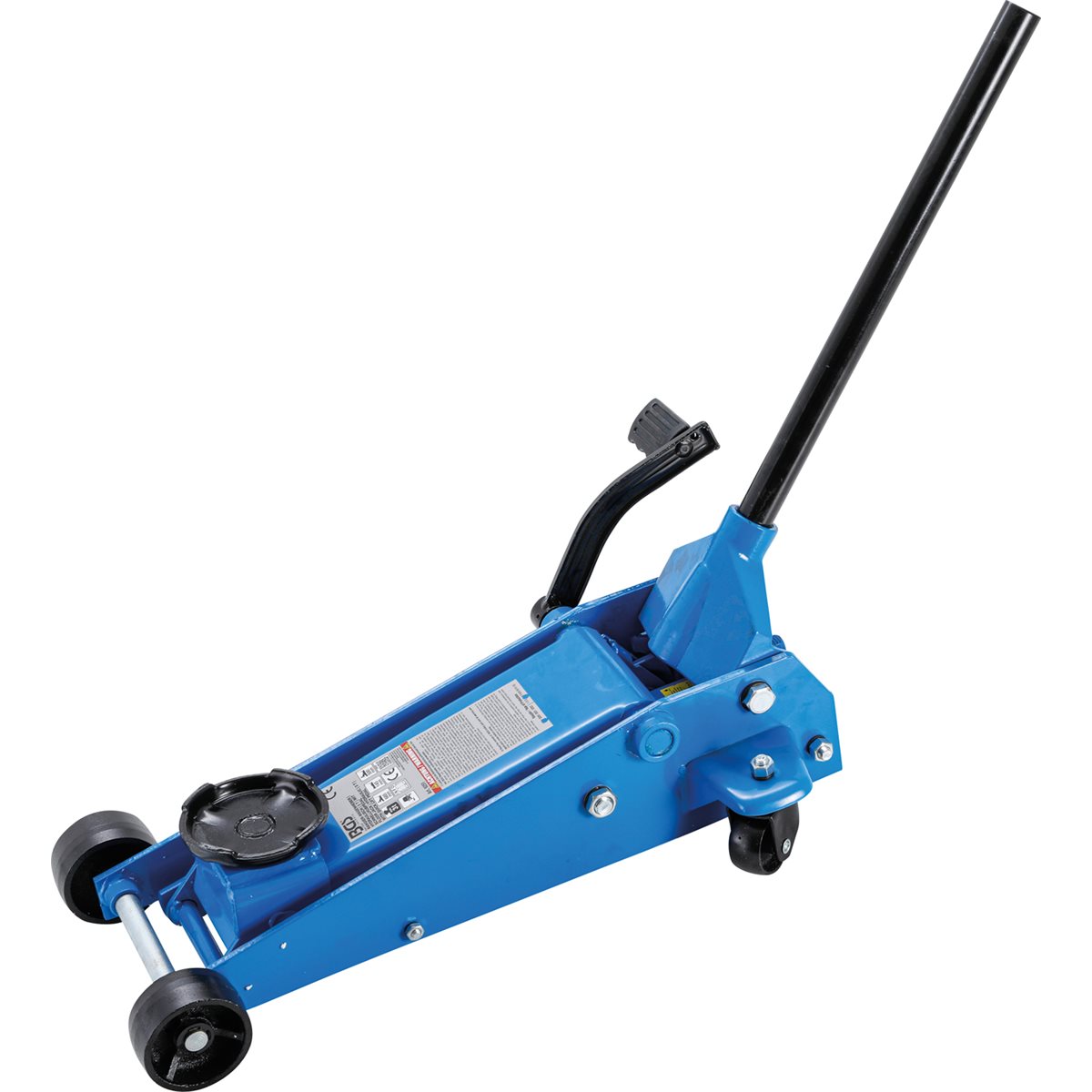

BGS 9251 Floor Jack, hydraulic, 3 t, with Quick Lift Pedal
Features:
BGS 9251 Floor Jack, hydraulic, 3 t, with Quick Lift Pedal
quick lift possible with separate foot pedal
quick-lift pedal to be mounted separately as needed
lifting height at nominal load: 340 - 500 mm
stroke: 355 mm
support pad Ø: 120 mm
2 rigid castors, 2 swivel castors
Technical features:
Length: 685 mm
Lifting height min.: 145 mm
Gross weight: 38000 g
Rated load capacity: 3 t
Lifting height max.: 500 mm
EAN: 4026947092515

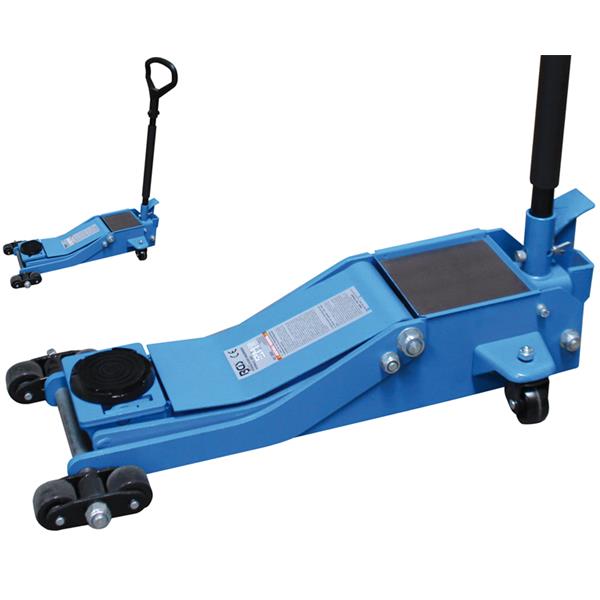

BGS 9252 Floor Jack, hydraulic, extra flat, 2 t Features:BGS 9252 Floor Jack, hydraulic, extra flat, 2 textremely low headroom, also suitable for vehicles with low ground clearancelifting side has double castors with tilt mechanism for better manoeuvring through grids, etc.2 castors made of PU for low running noise2 swivel castors, made of steelfoam coated lever prevents damage to the carjacketed handle ring for more convenient operationadditional foot pedal for quick liftingmax. lifting capacity: 2000 kgweight 40 kg Technical features:Height: 214 mmWidth: 360 mmLifting height min.: 70 mmLifting height max.: 500 mmGross weight: 47000 gRated load capacity: 2 tLength: 822 mmEAN: 4026947092522
BGS 9255 Floor Jack, hydraulic, 3 t
Features:
BGS 9255 Floor Jack, hydraulic, 3 t
rugged steel construction
2 castors & 2 swivel castors, made of steel
Technical features:
Length: 572 mm
Min. height: 130 mm
Width: 330 mm
Rated load capacity: 3 t
Gross weight: 29000 g
Max. height: 465 mm
Height: 240 mm
EAN: 4026947092553
Compac 10T-HC G5 Jack, 10 t (911074-1)
Features:
Ergonomically shaped rubber-covered handles for improved operating comfort.
Quick lift. Additional foot pedal to raise the saddle quickly.
The hydraulic system is equipped with a protective device against overloading (pressure relief valve).
A safety valve ensures a defined speed when lowering.
Robust, fully welded steel construction of the highest steel quality.
The supplied pneumatic rubber tyre is an accessory and must be ordered separately (Compac 60200)
The rubber tyres are fitted ex works and cannot be retrofitted
Technical features:
Model
Max (ton)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
kg
1,4T-HC 77
1,4
77
715
1050
190
380
925
52
2T-HC
2
98
735
1035
200
380
1045
56
3T-HC
3
130
860
1620
210
460
1045
91
6T-HC
6
180
960
1830
350
475
1045
180
8T-HC
8
180
960
1830
350
475
1045
185
10T-HC
10
210
710
1700
290
475
1045
148
Compac 2T-77 Jack, 2 t, low-profile
Features:
Ergonomically designed handle. Rubber coated.
Quick-approach foot pedal.
Built-in safety lowering control valve for safe lowering even under maximum load.
Built-in pressure relief valveprevents overloading.
Protective cylinder jacket to prevent intrusion of dirt and welding splatter.
Max. height 480 mm.
Min. height 77 mm.
max load: 2000 kg
Compac 3T-HC G5 Jack, 3 t
Features:
Ergonomically shaped rubber-covered handles for improved operating comfort.
Quick lift. Additional foot pedal to raise the saddle quickly.
The hydraulic system is equipped with a protective device against overloading (pressure relief valve).
A safety valve ensures a defined speed when lowering.
Robust, fully welded steel construction of the highest steel quality.
The supplied pneumatic rubber tyre is an accessory and must be ordered separately (Compac 60200)
The rubber tyres are fitted ex works and cannot be retrofitted
Technical features:
Model
Max (ton)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
kg
1,4T-HC 77
1,4
77
715
1050
190
380
925
52
2T-HC
2
98
735
1035
200
380
1045
56
3T-HC
3
130
860
1620
210
460
1045
91
6T-HC
6
180
960
1830
350
475
1045
180
8T-HC
8
180
960
1830
350
475
1045
185
10T-HC
10
210
710
1700
290
475
1045
148
Compac 8T-HC G3 Jack, 8 t
Features:
Ergonomically shaped rubber-covered handles for improved operating comfort.
Quick lift. Additional foot pedal to raise the saddle quickly.
The hydraulic system is equipped with a protective device against overloading (pressure relief valve).
A safety valve ensures a defined speed when lowering.
Robust, fully welded steel construction of the highest steel quality.
The supplied pneumatic rubber tyre is an accessory and must be ordered separately (Compac 60200)
The rubber tyres are fitted ex works and cannot be retrofitted
Technical features:
Model
Max (ton)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
kg
1,4T-HC 77
1,4
77
715
1050
190
380
925
52
2T-HC
2
98
735
1035
200
380
1045
56
3T-HC
3
130
860
1620
210
460
1045
91
6T-HC
6
180
960
1830
350
475
1045
180
8T-HC
8
180
960
1830
350
475
1045
185
10T-HC
10
210
710
1700
290
475
1045
148
Compac A3216-C Air hydraulic jack, 32/16 Ton
Features:
Ergonomically designed handle for operator comfort. Rubber coated.
Short design for easy manoeuvrability.
Min. height 150 mm.
Max. height 300 mm.
Standard with extensions:10, 70 and 120 mm.
Compac A5816-C Air hydraulic jacks, 58/32/16 Ton
Features:
Long handle for better reach.
Durable 3-stage cylinder provides relatively high maximum lifting height.
Min. height only 120 mm.
Standard with extensions:10, 70 and 120 mm.
Technical features:
Max. (ton): 58/32/16
A (mm): 120
B1 (mm): 165
B2 (mm): 210
B3 (mm): 255
B4 (mm): 455
C (mm): 665
D (mm): 130
E (mm): 305
F (mm): 1360
Kg: 52
Compac A5830-C Air hydraulic jack, 58/30 Ton
Features:
Telescopic jack with extra high lifting capacity.
Long chassis for better reach.
Standard with extensions:10, 70 and 120 mm.
Technical features:
Max. (ton): 58/30
A (mm): 220
B1 (mm): 330
B2 (mm): 450
B3 (mm): -
B4 (mm): 650
C (mm): 1050
D (mm): 150
E (mm): 350
F (mm): 1360
Kg: 80
