Proxxon 24150 Precision lathe FD 150/E

PROXXON color> 24150 Precision lathe FD 150/E For facing and longitudinal turning, for boring, taper turning, slicing and drilling. Complete with three-jaw chuck and live centre Features: Machine bed with dovetail guides of continuous casting aluminium Die-cast aluminium headstock spindle With quiet special DC motor, 2-stage belt drive and additional electronic speed control for high engine power at low speeds for larger work pieces and for the appropriate cutting speed, even for the smallest pieces Main switch with emergency stop function and restart protection Precision bearing mounted main spindle with continuous 8.5mm bore Chuck fit for standard ER 11 type collets Three-jaw chuck , self-centering (inside jaws 1.5 - 32mm), (outside jaws 20 - 60mm) Die-cast aluminium tailstock with spindle and live centre (fitting MK 0/ short) Support: To be shifted manually on the bed and clamped with lever Rotating quick change tool post for turning steels 6 x 6mm Processing via top slide (60mm, travel distance Z) and cross slide (40mm, travel distance X) The angle adjustment of the upper carriage makes it possible to turn tapers up to +/- 45° Handwheels with zero adjustable scale ring (1 division = 0.05mm, 1 revolution = 1.0mm) Technical data: 220 - 240V. 50/60Hz Distance between centres 150mm Swing 55mm Height over cross slide 33mm Cross slide travel (X) 40mm, top slide travel (Z) 60mm Steel tool post for turning steels 6 x 6mm Spindle bore 8.5mm 2-stage belt drive with electronic speed control: Stage 1 = 500 - 2,500rpm. Stage 2 = 1,000 - 5,000rpm Dimensions approx. 360 x 150 x 150mm Weight 4.5kg Insulated to class 1

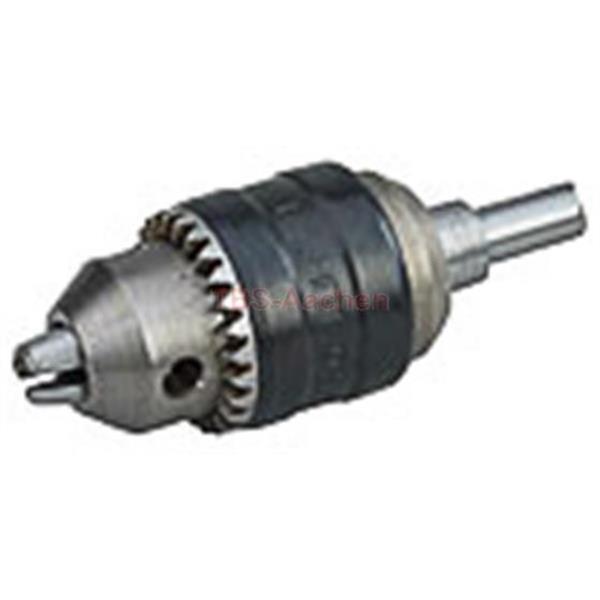

PROXXON 24152 drill chuck. Capacity 0.5 - 6.5mm for the FD 150/E Features: Industrial quality with high concentricity (allowed up to 10,000rpm) Complete with arbour B 10 x MK 0/short For the tailstock of the FD 150/E

Proxxon 24062 Radius cutting attachment   Features: Is mounted on the cross slide in place of the tool holder For producing convex and concave shapes For turning radii or 3/4 spheres up to max. 32mm Height adjustable tool holder (boring tool tip adjustable from 30 through 45mm above cross slide) for use with FD 150/E, PD 250/E, PD 400 and older PROXXON lathes In wooden box with sliding lid   Technical features: Dimensions: base plate 67 x 50mm Height 55mm Complete with finishing cutter 8 x 8 x 80mm

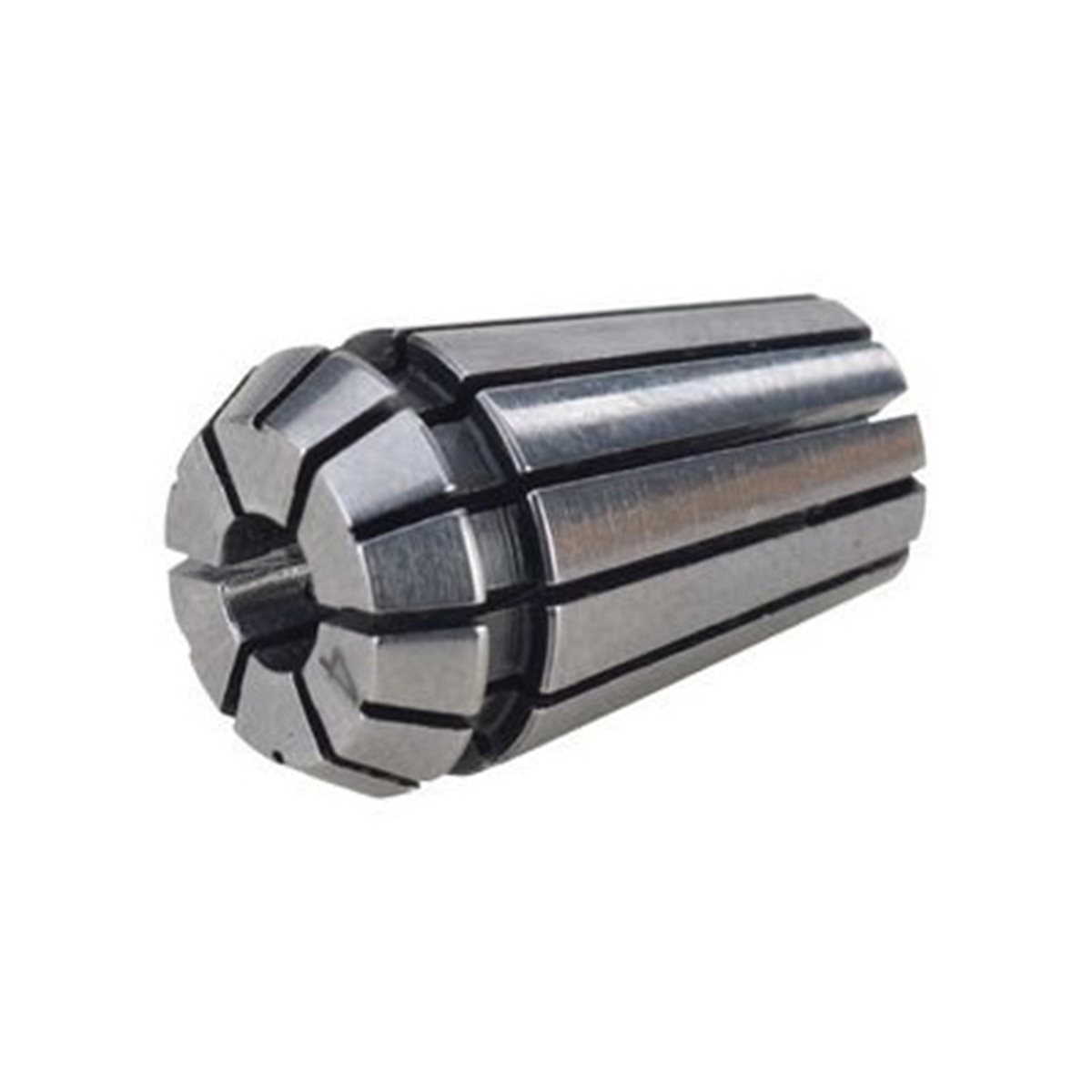

PROXXON color> 24154 Multiple range standard ER 11 type collets (DIN 6499/B) fot the FD 150/E Features: Offering high concentricity May be reduced up to 0.5mm below their nominal diameter (intermediate sizes not required) D = 11.5mm, L = 18mm One each of 2.0 - 2.5 - 3.0 - 4.0 - 5.0 - 6.0 and 7.0mm are included With clamping nut M 16 x 1 Suitable for the main spindle of the FD 150/E Supplied in a wooden box 7 pieces

PROXXON color> 24524 Cutting tool set for precision lathe FD 150/E, 6x6x65 mm, 6-piece Made of high-quality cobalt HSS steel, ground Features: One each boring, roughing out, parting, finishing, right and left cutter Size 6 x 6 x 65mm For FD 150/E Supplied in wooden box

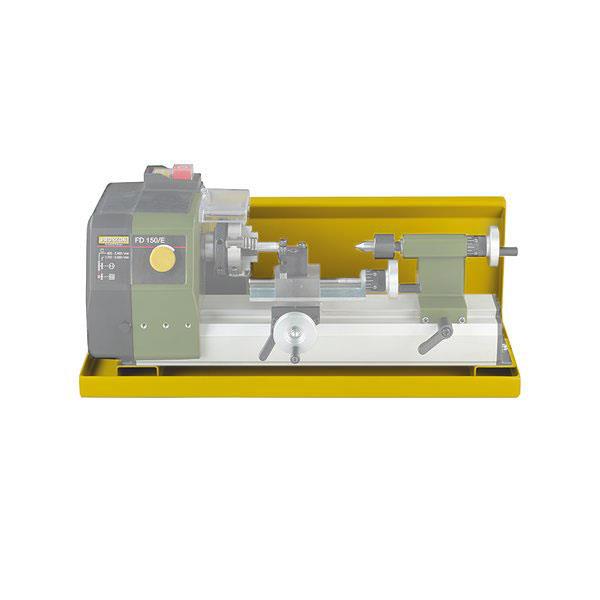

Proxxon 24156 Splash guard and chip collecting tray Features: Made from 1.5mm thick sheet metal, powder-coated. Bevelled edges at the front and back enable easy cleaning. Pre-drilled mounting holes and raised base to secure stability of the FD 150/E. L 400 x W 165 x H 140mm. The lathe depicted here is not included in the scope of delivery.
