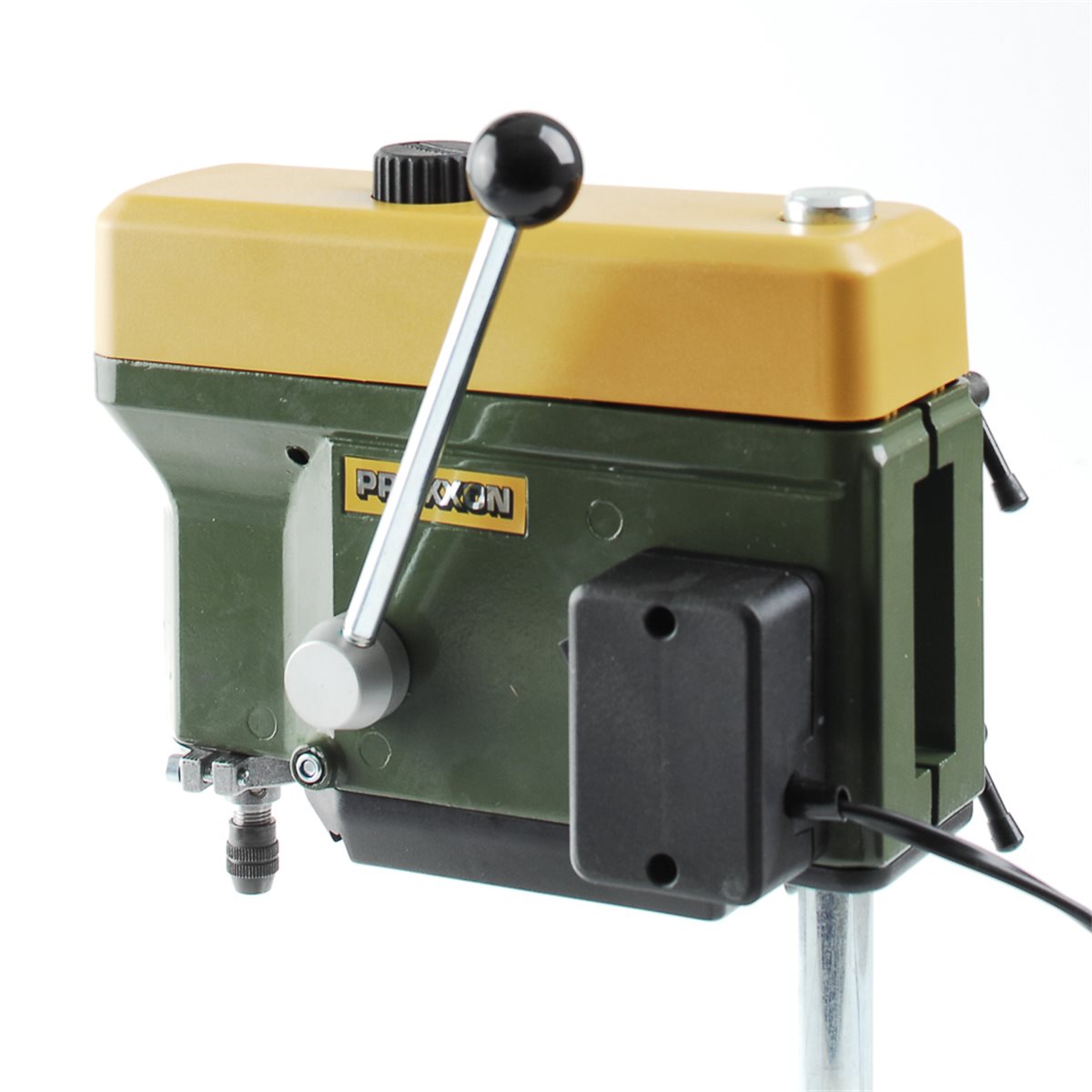

PROXXON 28128 Bench drill machine TBM 220

€154.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Available, delivery time: 2 working days

Available₁: 2 unit(s)

Stk

Product number: 1843206

Manufacturer no.: 28128

EAN: 4006274281288

Weight in kg: 3.75

Product information "PROXXON 28128 Bench drill machine TBM 220 "

PROXXONcolor> 28128 Bench drill machine TBM 220

Features:

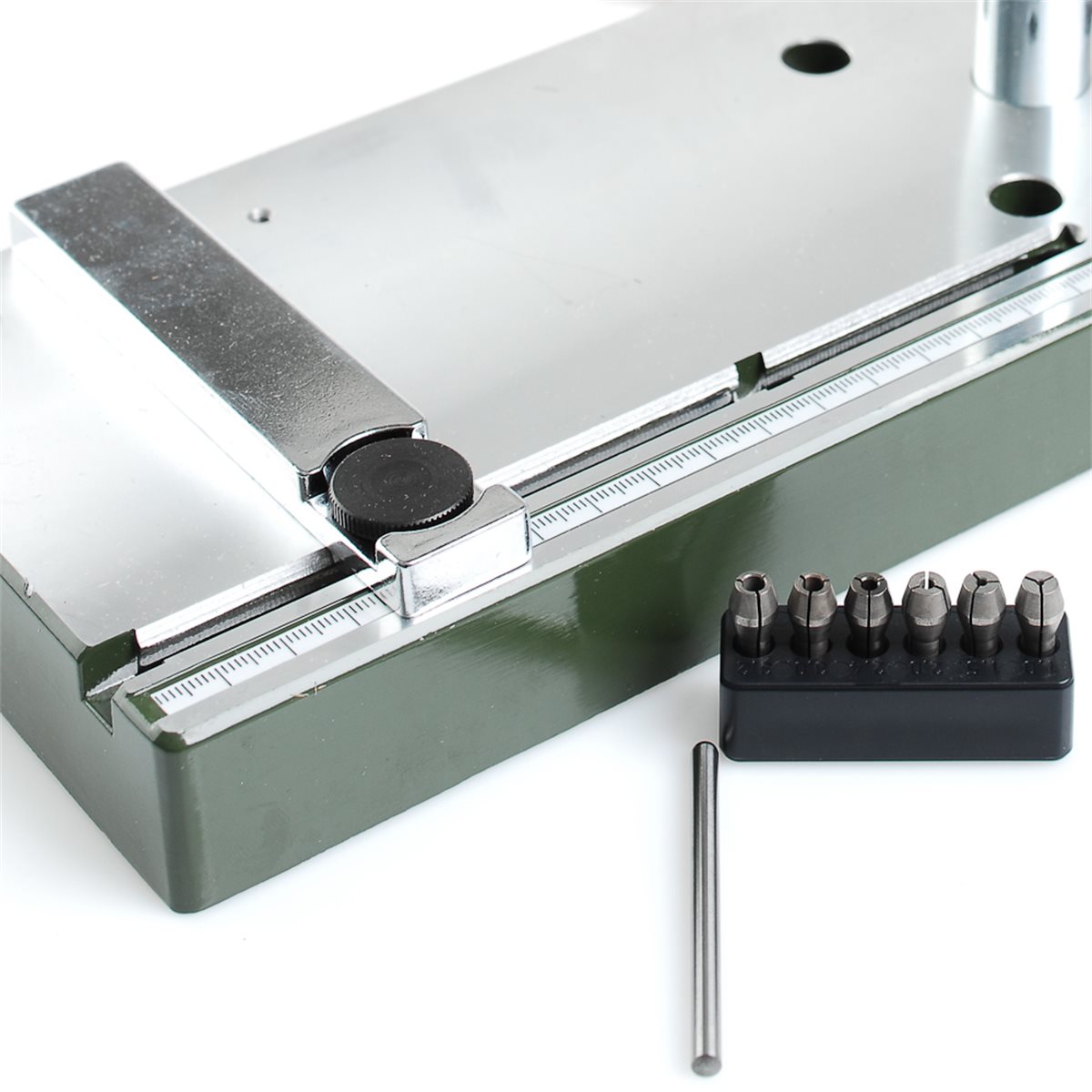

Plane-milled worktable of die-cast aluminium (220 x 120mm) with adjustable fence and scale as well as threaded holes for securing the MICRO compound table KT 70
Machined worktop of high quality, ribbed die-cast aluminium (220 x 120mm)
Adjustable fence with scale
Solid, hard-chromed steel column, 340mm high, 20mm diameter
Super stable die-cast head with VDE approved 220 - 240V motor
Very quiet and of long life expectancy type

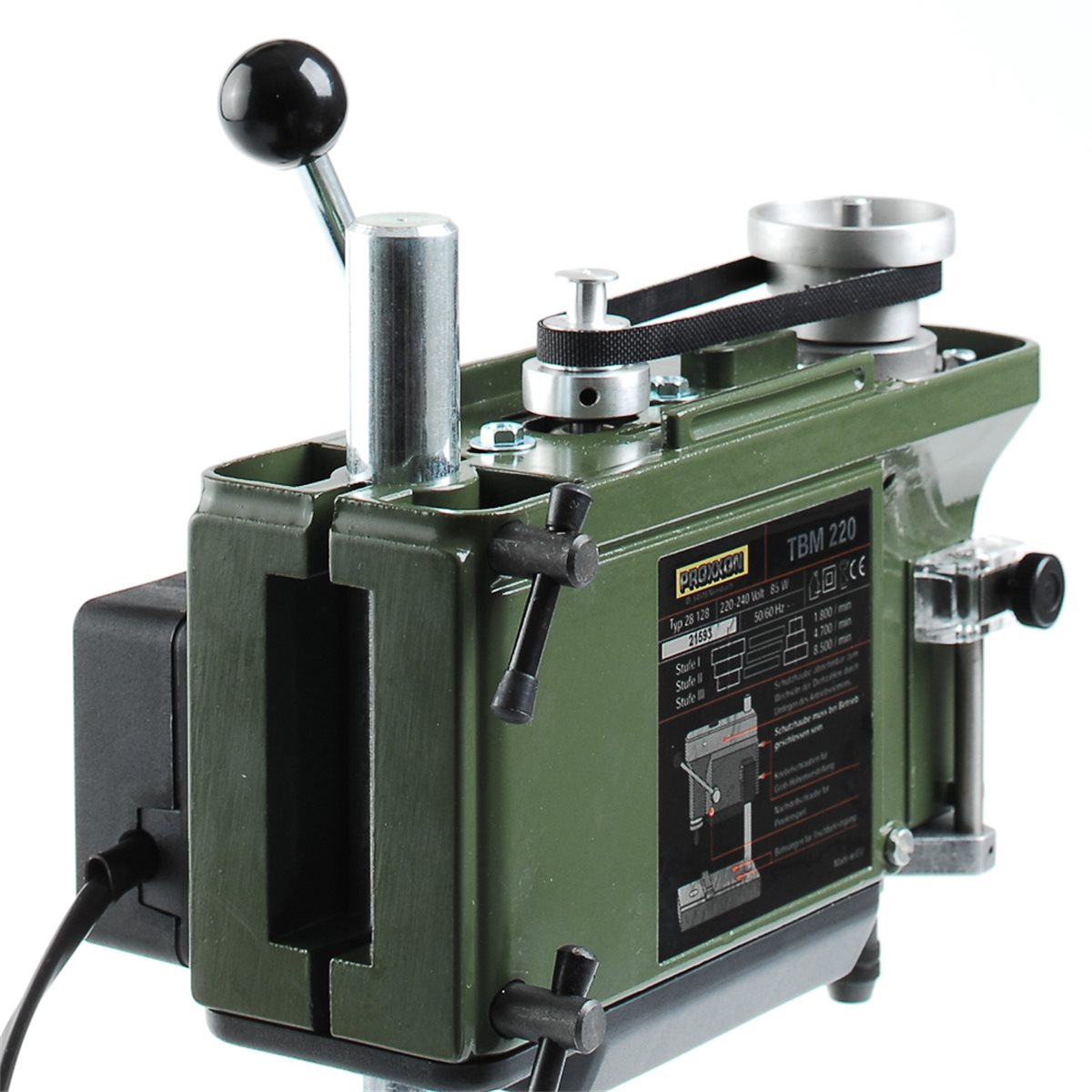

Power transmission by aluminium pulleys and flat belt
Three spindle speeds (triple torque at low speeds)

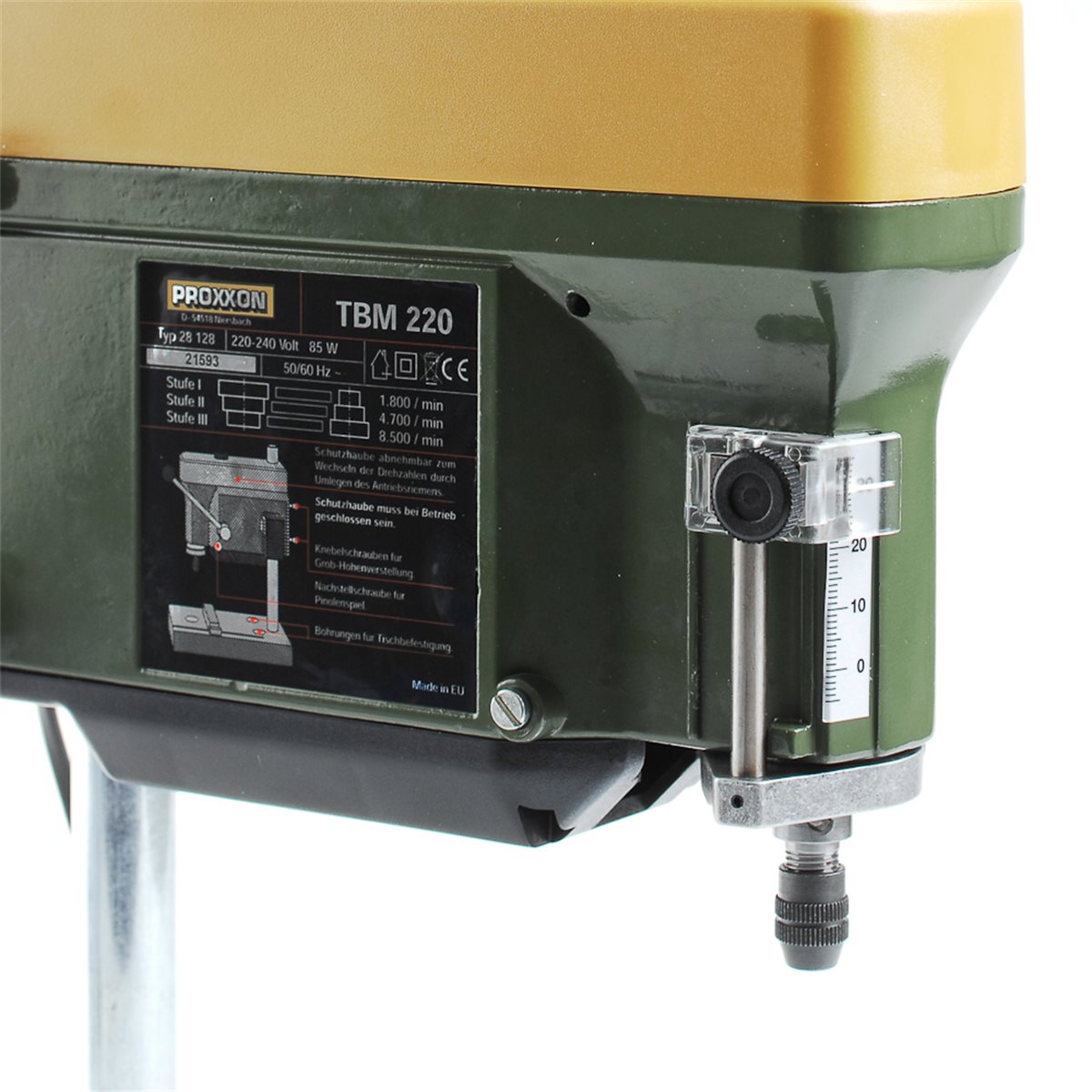

Feed lever with adjustable depth scale

Technical data:

220 - 240V. 85W. 50 - 60Hz
Spindle speeds of 1,800, 4,700 and 8,500 rpm
Extremely high rotational accuracy, 30mm feed
Throat depth (column to drill spindle) 140mm

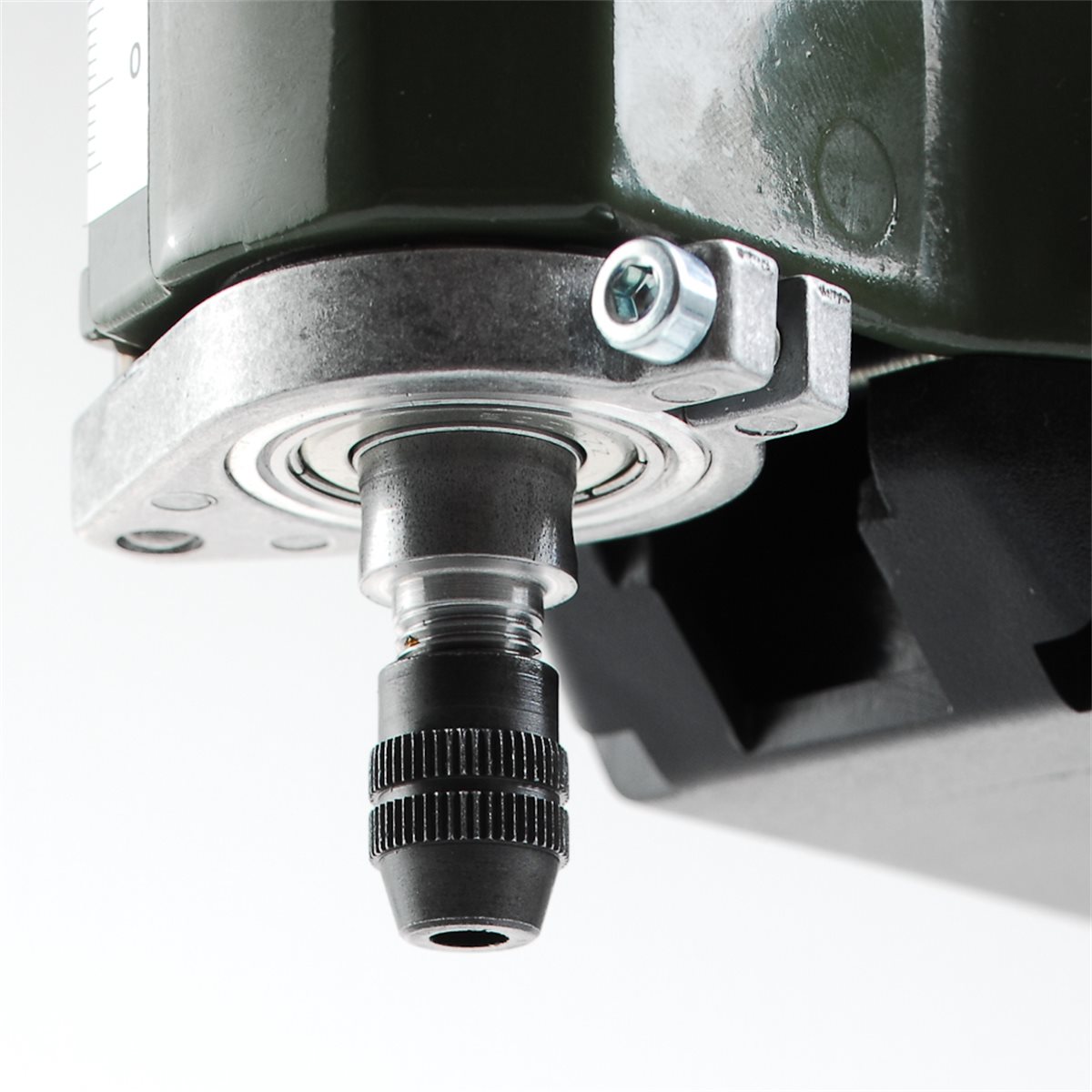

Six triple slit precision collets for shaft sizes 1.0 - 1.5 - 2.0 - 2.4 - 3.0 - 3.2mm are included
3/8" thread
Weight 3.3kg

Micromot devices:	Drilling machine

Product Safety and Downloads

Documents and datasheets

Safety Instructions

Product safety information

Manufacturer

PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com

Zubehör

PROXXON 28128 Bench drill machine TBM 220

PROXXONcolor> 28128 Bench drill machine TBM 220 Features: Plane-milled worktable of die-cast aluminium (220 x 120mm) with adjustable fence and scale as well as threaded holes for securing the MICRO compound table KT 70 Machined worktop of high quality, ribbed die-cast aluminium (220 x 120mm) Adjustable fence with scale Solid, hard-chromed steel column, 340mm high, 20mm diameter Super stable die-cast head with VDE approved 220 - 240V motor Very quiet and of long life expectancy type Power transmission by aluminium pulleys and flat belt Three spindle speeds (triple torque at low speeds) Feed lever with adjustable depth scale Technical data: 220 - 240V. 85W. 50 - 60Hz Spindle speeds of 1,800, 4,700 and 8,500 rpm Extremely high rotational accuracy, 30mm feed Throat depth (column to drill spindle) 140mm Six triple slit precision collets for shaft sizes 1.0 - 1.5 - 2.0 - 2.4 - 3.0 - 3.2mm are included 3/8" thread Weight 3.3kg

€154.95*

Prices incl. VAT plus shipping costs

Proxxon 27100 MICRO compopund table KT 70

PROXXONcolor> 27100 MICRO compound table KT 70 Small and accurate. Ideal for MICROMOT drill stands and drill press TBM 220 Features: Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs spielfrei nachjustierbare Schwalbenschwanzführungen three T-slots of the MICROMOT standard (12 x 6 x 5mm) Adjustable ruler eases workpiece positioning Both handwheels have zero-resettable dials with graduations indicating:1 revolution = 1,0 mm, 1 devisdion= 0,05 mm The clamps and securing bolts for the MB 140/S and TBM 220 are included Technical data: Table size 200 x 70 mm X travel 134 mm Y travel 46 mm Maximum height 43 mm

€74.95*

Prices incl. VAT plus shipping costs

Proxxon 28122 RÖHM-Chuck, 0,5 to 6mm

PROXXONcolor> 28122 RÖHM-Chuck, 0,5 to 6mm for the TBM 220 Features: For drill shank sizes 0.5 to 6.0mm Max. speed 10,000rpm Industrial quality with extra high speed accuracy With 3/8" thread for MICROMOT bench drill TBM 220

€7.90*

Prices incl. VAT plus shipping costs

Proxxon 28132 Machine vice MS 4

PROXXONcolor> 28132 Machine vice MS 4 for the TBM 220 bench drill machine and MB 140/S drill stand Features: Die-cast zinc With three machined sides The slot fits the adjustable fence of the drill stand MB 140/S and bench drill TBM 220 Horizontal and vertical V-slots in jaw Technical data: Jaw width 50mm and height 10 mm Maximum clamping width 34mm

€14.90*

Prices incl. VAT plus shipping costs
