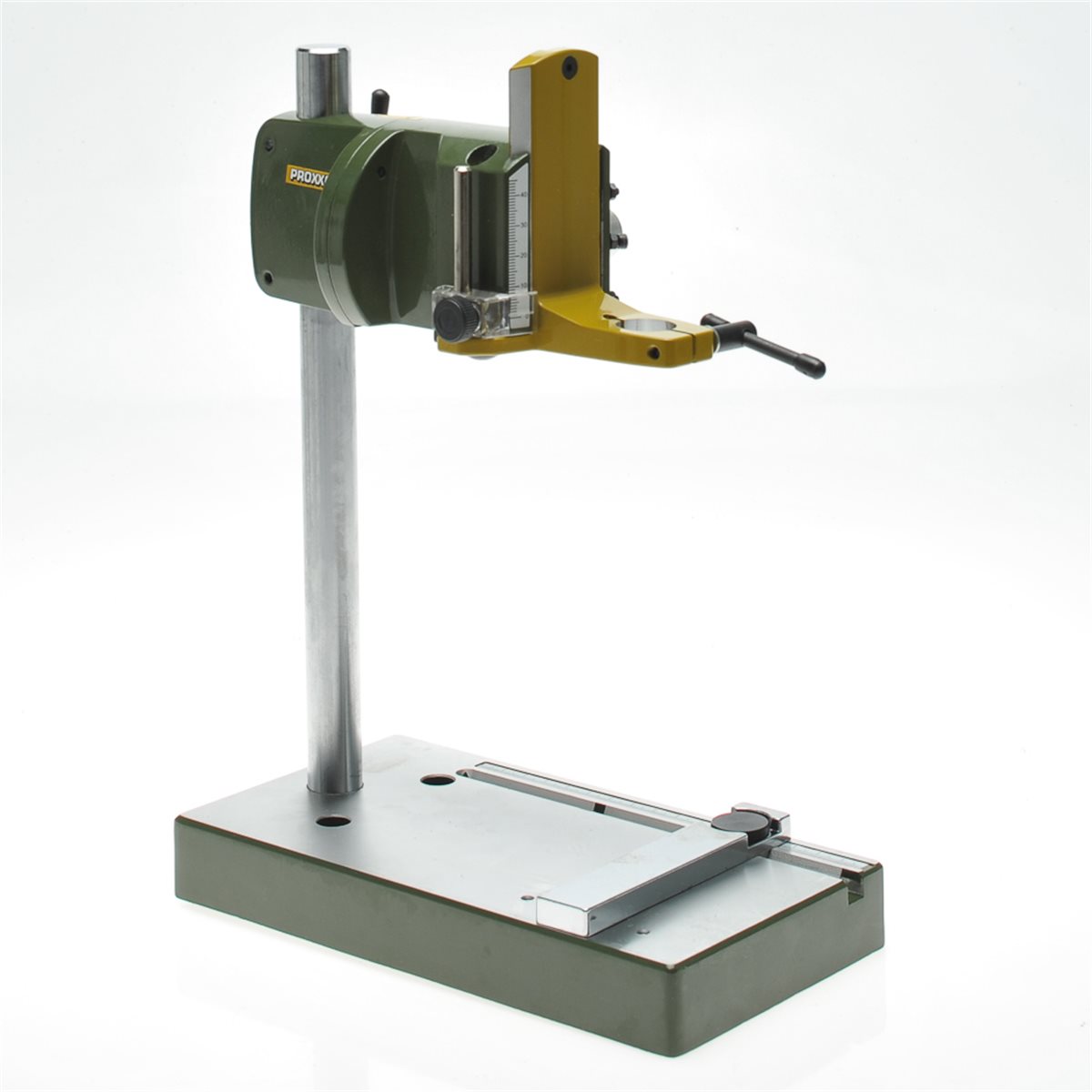

Proxxon 28600 MICROMOT drill stand MB 200
Product number:
1852968
Hersteller-Nr.:
28600
EAN:
4006274286009
Gewicht (in KG):
2.517
Product information "Proxxon 28600 MICROMOT drill stand MB 200"
PROXXON color> 28600 MICROMOT drill stand MB 200
Features:

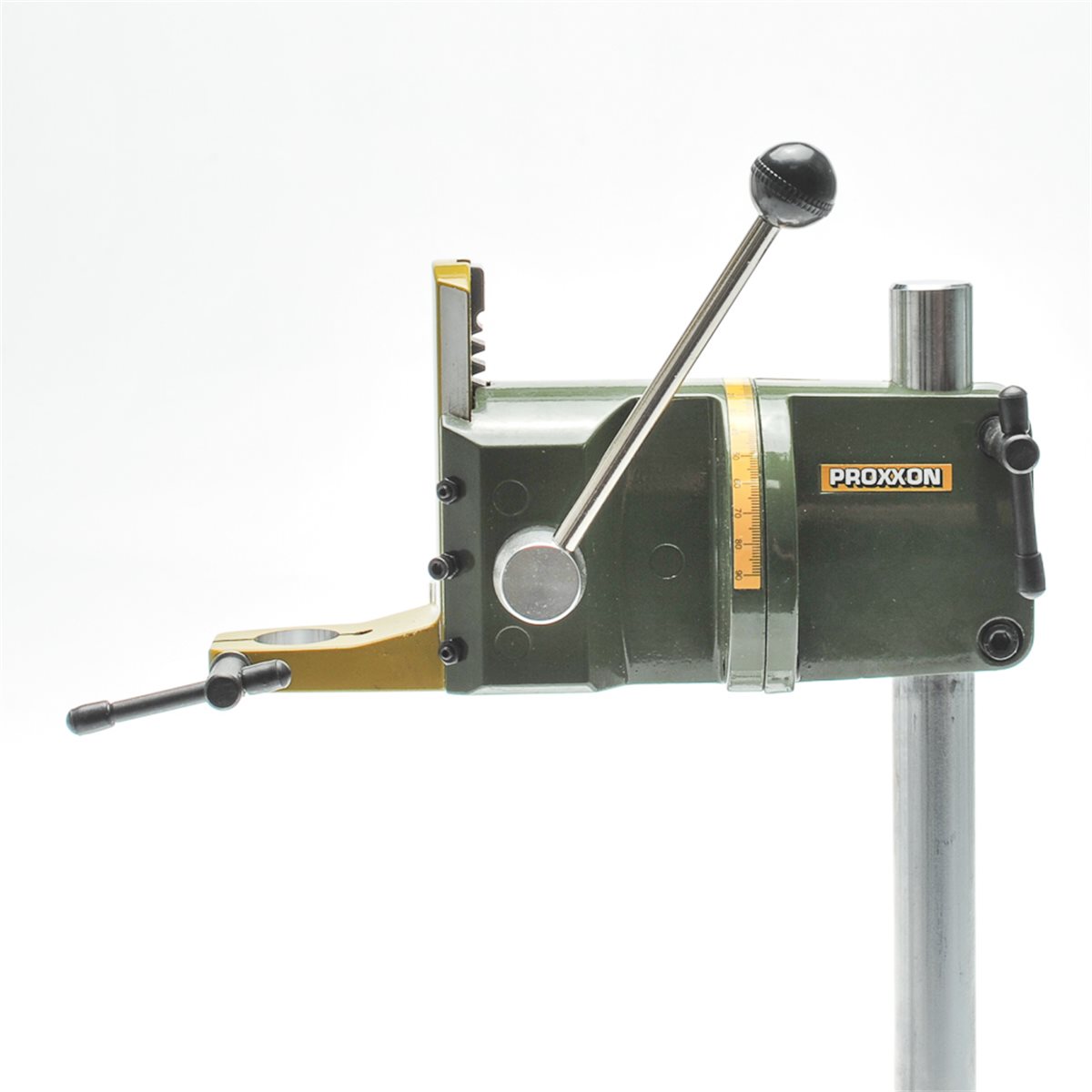

- Head with dovetail guides can be tilted through 90° (scale ring available)
- Enables bevelled drilling and versatile milling operations
- Geared rack and pinion feed with return spring allowing effortless and sensitive operation

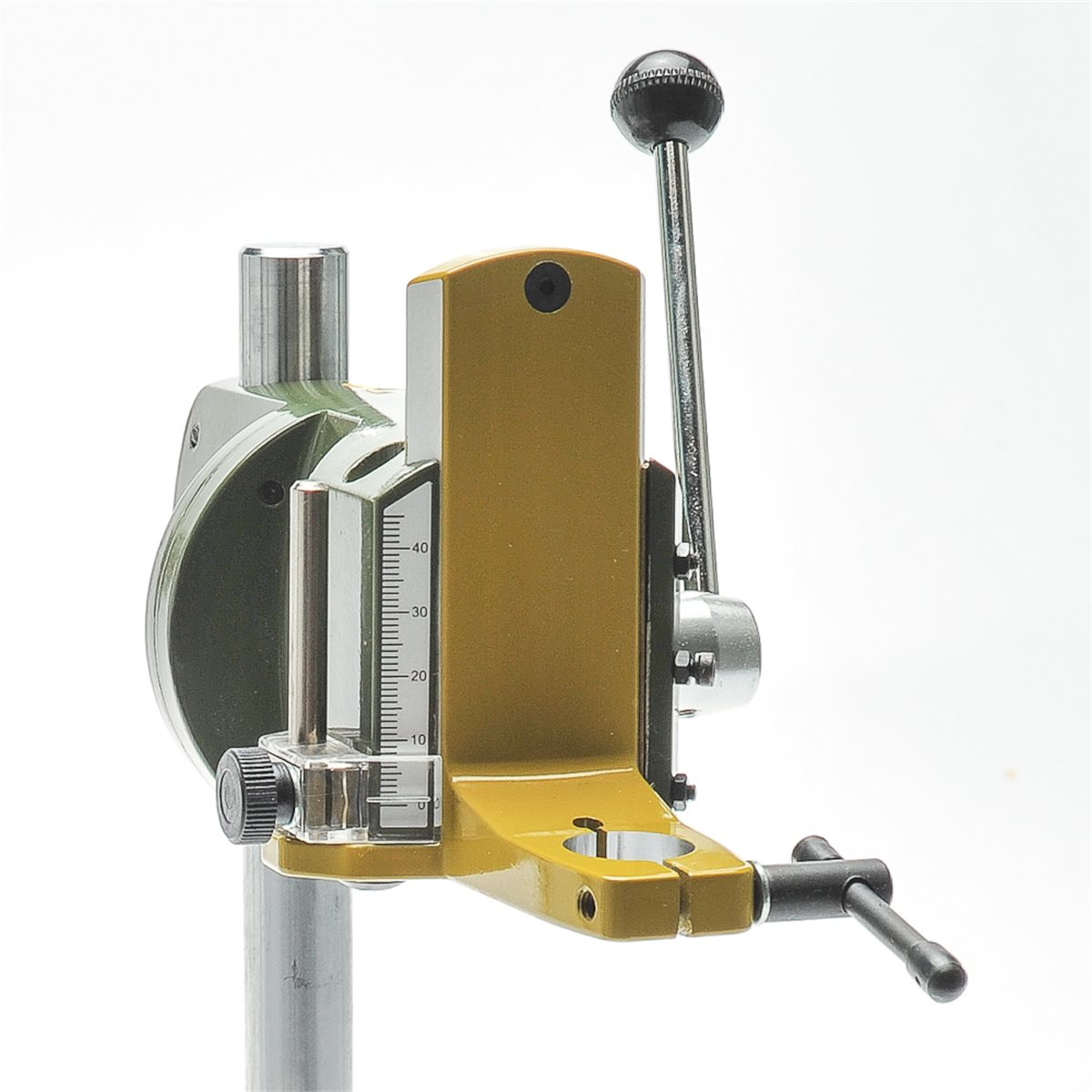

- Practical drill depth scale with adjustable limit stop (maximum travel 40mm)
- With standard 20mm collar for MICROMOT drilling and milling devices
- With solid, hard chromium-plated steel column (280 x 20mm), throat capacity (column inside to centre of tool) 140mm
- Plane-milled table (220 x 120mm) with parallel limit stop and scale
- Drilled, tapped holes for securing the MICRO compound table KT 70 and holes to fix the drill stand itself are also provided
- Weight 2,2 kg
| Micromot Geräte: | Bohrständer |
|---|
Login
Accessory Items
Proxxon 28600 MICROMOT drill stand MB 200
€84.95*
PROXXON color> 28600 MICROMOT drill stand MB 200
Features:
Head with dovetail guides can be tilted through 90° (scale ring available)
Enables bevelled drilling and versatile milling operations
Geared rack and pinion feed with return spring allowing effortless and sensitive operationPractical drill depth scale with adjustable limit stop (maximum travel 40mm)
With standard 20mm collar for MICROMOT drilling and milling devices
With solid, hard chromium-plated steel column (280 x 20mm), throat capacity (column inside to centre of tool) 140mm
Plane-milled table (220 x 120mm) with parallel limit stop and scale
Drilled, tapped holes for securing the MICRO compound table KT 70 and holes to fix the drill stand itself are also providedWeight 2,2 kg
Proxxon 27100 MICRO compound table
KT 70
€74.95*
PROXXONcolor> 27100 MICRO compound table KT 70
Small and accurate. Ideal for
MICROMOT drill stands and drill press TBM 220
Features:
Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs
spielfrei nachjustierbare Schwalbenschwanzführungen three T-slots of the MICROMOT standard (12 x 6 x 5mm)
Adjustable ruler eases workpiece positioning
Both handwheels have zero-resettable dials with graduations indicating:1 revolution = 1,0 mm, 1 devisdion= 0,05 mm
The clamps and securing bolts for the MB 140/S and TBM 220 are included
Technical data:
Table size 200 x 70 mm
X travel 134 mm
Y travel 46 mm
Maximum height 43 mm
Proxxon 20200 Universal milling system UF/E
€284.95*
Proxxon 20200 Universal milling system UF/E
Compact and with a weight of only 730g extremely light. Brushless special motor for 10,000 - 30,000rpm.
High torque even at lower speeds. 230V-operation (no additional controller needed).
Variable speed pre-selection from 10,000 to 30,000rpm and digital speed indication. The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range. Machine base made of die-cast aluminium with 20mm MICROMOT standard collar and 43mm European standard spindle collar. Triple ball bearing spindle for high concentric accuracy and smooth running. The collets depicted are included, but not the milling bit.
Features:
Digital speed indication.
Variable speed pre-selection.
Maintenance-free, brushless DC-motor for spindle speeds from 10,000 - 30,000rpm.
Precisely machined die-cast aluminium housing offering exact ball-bearing seats.
43mm collar (European standard).
20mm MICROMOT standard collar.
Technical data:
230 V. 50/60 Hz. 250 W.
10.000 - 30.000rpm.
Weight 730g.
Includes three ER11 collets according to DIN/ISO in sizes 2.5 - 3 and 6mm.
Proxxon 28132 Machine vice MS 4
€14.90*
PROXXONcolor> 28132 Machine vice MS 4
for the TBM 220 bench drill machine and MB 140/S drill stand
Features:
Die-cast zinc
With three machined sides
The slot fits the adjustable fence of the drill stand MB 140/S and bench drill TBM 220
Horizontal and vertical V-slots in jaw
Technical data:
Jaw width 50mm and height 10 mm
Maximum clamping width 34mm
